Applications:

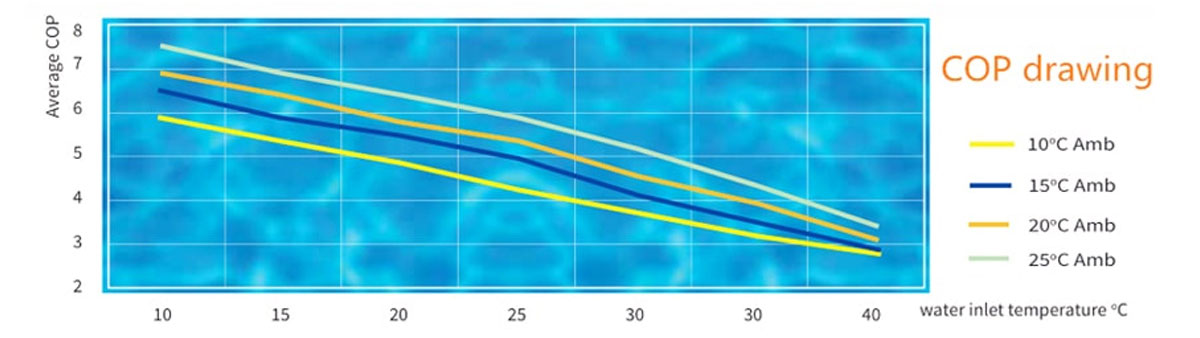

With COP of 5.7 at a working condition of 24℃ / 19℃ (DB / WB), Fantastic swimming pool heat pump has high efficiency for both pool cooling and heating.

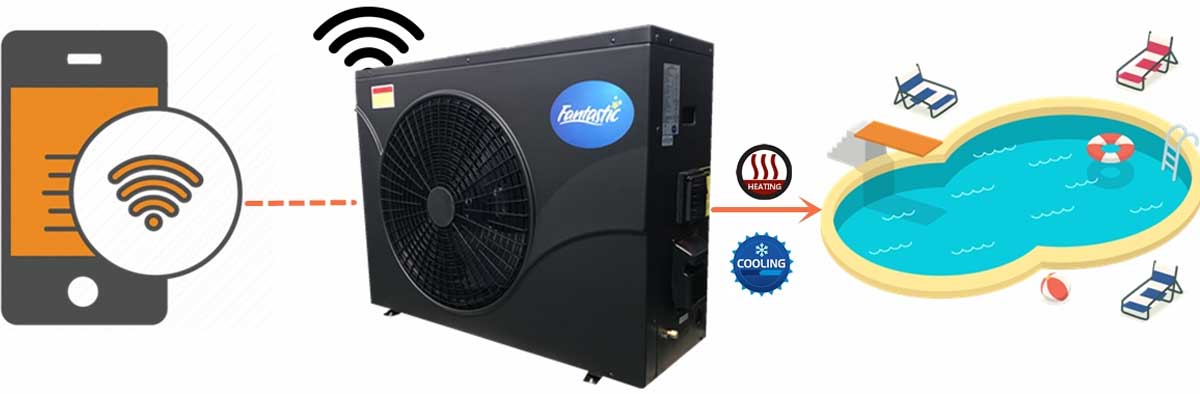

FANTASTIC swimming pool heat pump has a Wi-Fi remote control, which means you can control and know the working situation of your swimming pool heat pump on your Smartphone at any time and anywhere, even if you are away from home.

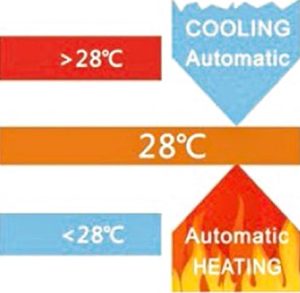

FANTASTIC swimming pool heat pump has an auto mode to keep the pool water temperature. For example, if the pool target water temperature is set to 28℃ when the actual pool water temperature is lower than 28℃, the heat pump will start heating automatically; when the actual pool water temperature is higher than 28℃, it will start cooling automatically.

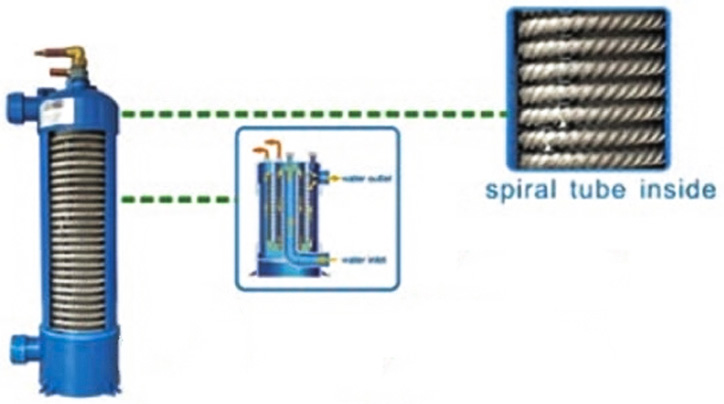

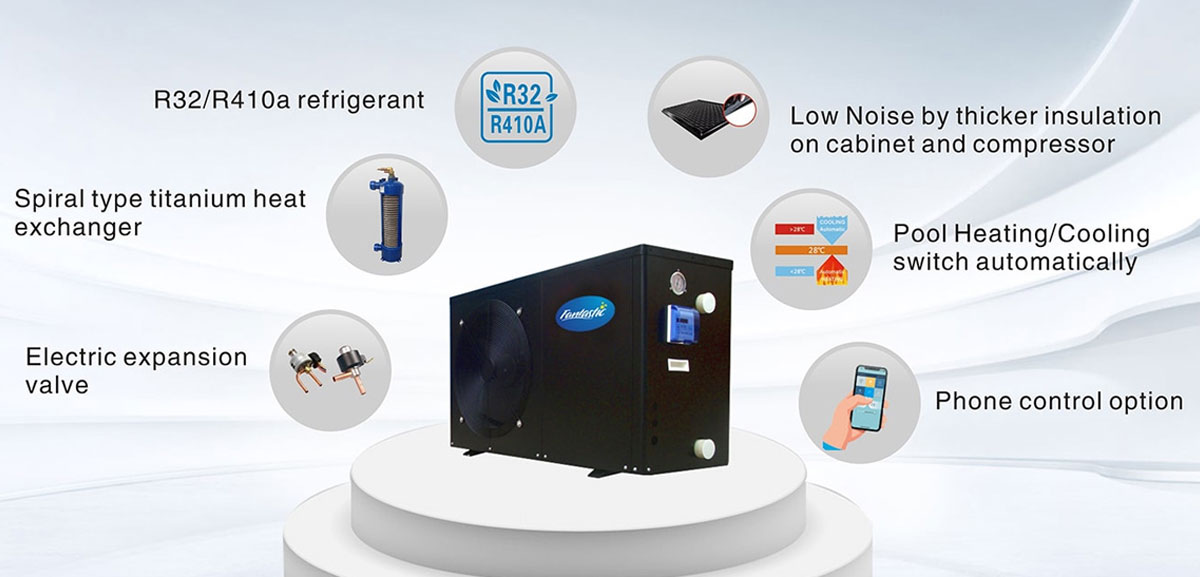

Fantastic patented titanium heat exchanger with spiral tubes inside, the titanium coil with higher heat efficiency and anti-corrosion, which makes the unit longer working life. Besides, FANTASTIC has patented shell-certified ETL for North America.

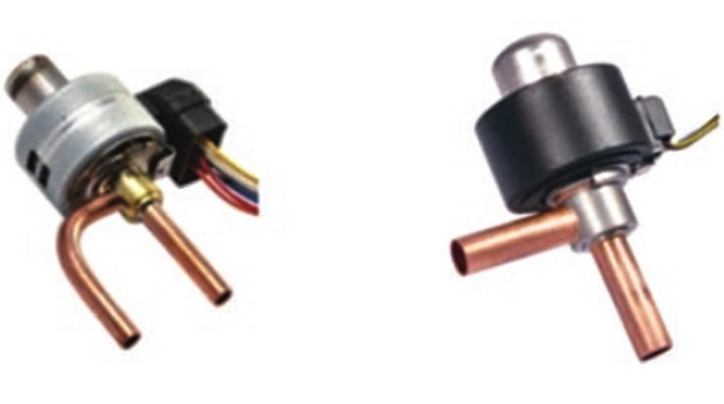

Wider working temperature range, faster and more accurate refrigerant flow control than capillary and mechanical expansion valve. Best choice to achieve higher efficiency and energy-saving.
| Model | FPHC010S | FPHC015S | FPHC018S | FPHC020S | FPHC025S | FPHC030S | |
| Heating Condition | Ambient 27℃, Water: 26℃ | ||||||
| Heating Capacity | kW | 5.0 | 7.5 | 9.0 | 10.0 | 12.5 | 15.0 |
| BTU/h | 17100 | 25600 | 30800 | 34200 | 46100 | 51200 | |
| COP | W/W | 5.87 | 5.87 | 5.87 | 5.87 | 5.87 | 5.87 |
| Input Power | kW | 0.85 | 1.28 | 1.53 | 1.70 | 2.30 | 2.56 |
| Input Current | A | 3.9 | 5.8 | 7.0 | 7.7 | 10.5 | 11.6 |
| Heating Condition | Ambient 24℃, Water: 26℃ | ||||||
| Heating Capacity | kW | 4.3 | 6.5 | 7.7 | 8.6 | 10.8 | 12.9 |
| BTU/h | 14700 | 22100 | 26500 | 29400 | 36700 | 44100 | |
| COP | W/W | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 |
| Input Power | kW | 0.81 | 1.22 | 1.46 | 1.62 | 2.03 | 2.43 |
| Input Current | A | 3.7 | 5.5 | 6.6 | 7.4 | 9.2 | 11.1 |
| Heating Condition | Ambient 15℃, Water: 26℃ | ||||||
| Heating Capacity | kW | 3.8 | 5.7 | 6.8 | 7.6 | 9.5 | 11.4 |
| BTU/h | 13000 | 19500 | 23400 | 26000 | 32500 | 38900 | |
| COP | W/W | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 |
| Input Power | kW | 0.81 | 1.21 | 1.46 | 1.62 | 2.02 | 2.43 |
| Input Current | A | 3.7 | 5.5 | 6.6 | 7.4 | 9.2 | 11.0 |
| Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 |
| Water Outlet/Water Inlet | inch | 1–1/2″ | 1–1/2″ | 1–1/2″ | 1–1/2″ | 1–1/2″ | 1–1/2″ |
| Water Flow Volume (Range) | m3/h | 1.23~2.46 | 1.85~3.70 | 2.22~4.44 | 2.46~4.93 | 3.08~6.16 | 3.70~7.39 |
| Fan Direction | horizontal/Vertical | horizontal/Vertical | horizontal/Vertical | horizontal/Vertical | horizontal/Vertical | horizontal/Vertical | |
| Refrigerant Type | R32/R410A | ||||||
| Model | FPHC035S | FPHC040S | FPHC045S | FPHC050S3 | FPHC060S3 | FPHC070S3 | |
| Heating Conditon | Ambient 27℃, Water: 26℃ | ||||||
| Heating Capacity | kW | 17.5 | 20.0 | 22.5 | 25.0 | 30.0 | 35.0 |
| BTU/h | 59800 | 68300 | 76800 | 85300 | 102400 | 119500 | |
| COP | W/W | 5.87 | 5.87 | 5.87 | 5.87 | 5.87 | 5.87 |
| Input Power | kW | 2.98 | 3.41 | 3.83 | 2.55 | 2.78 | 2.97 |
| Input Current | A | 13.6 | 15.5 | 17.4 | 4.8 | 5.3 | 5.6 |
| Heating Condition | Ambient 24℃, Water: 26℃ | ||||||
| Heating Capacity | kW | 15.1 | 17.2 | 19.4 | 21.5 | 25.8 | 30.1 |
| BTU/h | 51400 | 58700 | 66100 | 73400 | 88100 | 102800 | |
| COP | W/W | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 |
| Input Power | kW | 2.84 | 3.25 | 3.65 | 4.06 | 4.87 | 5.68 |
| Input Current | A | 12.9 | 14.8 | 16.6 | 7.7 | 9.2 | 10.8 |
| Heating Condition | Ambient 15℃, Water: 26℃ | ||||||
| Heating Capacity | kW | 13.3 | 15.2 | 17.1 | 19.0 | 22.8 | 26.6 |
| BTU/h | 45400 | 51900 | 58400 | 64900 | 77800 | 90800 | |
| COP | W/W | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 |
| Input Power | kW | 2.83 | 3.23 | 3.64 | 4.04 | 4.85 | 5.66 |
| Input Current | A | 12.9 | 14.7 | 16.5 | 7.7 | 9.2 | 10.7 |
| Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Water Outlet/Water Inlet | inch | 1–1/2″ | 1–1/2″ | 1–1/2″ | 1–1/2″ | 1–1/2″ | 1–1/2″ |
| Water Flow Volume(range) | m3/h | 4.31~8.63 | 4.93~9.86 | 5.55~11.09 | 6.16~12.32 | 7.39~14.79 | 8.63~17.25 |
| Fan Direction | horizontal/Vertical | horizontal/Vertical | horizontal/Vertical | horizontal/Vertical | horizontal/Vertical | horizontal/Vertical | |
| Refrigerant Type | R32/R410A | ||||||
