Applications:

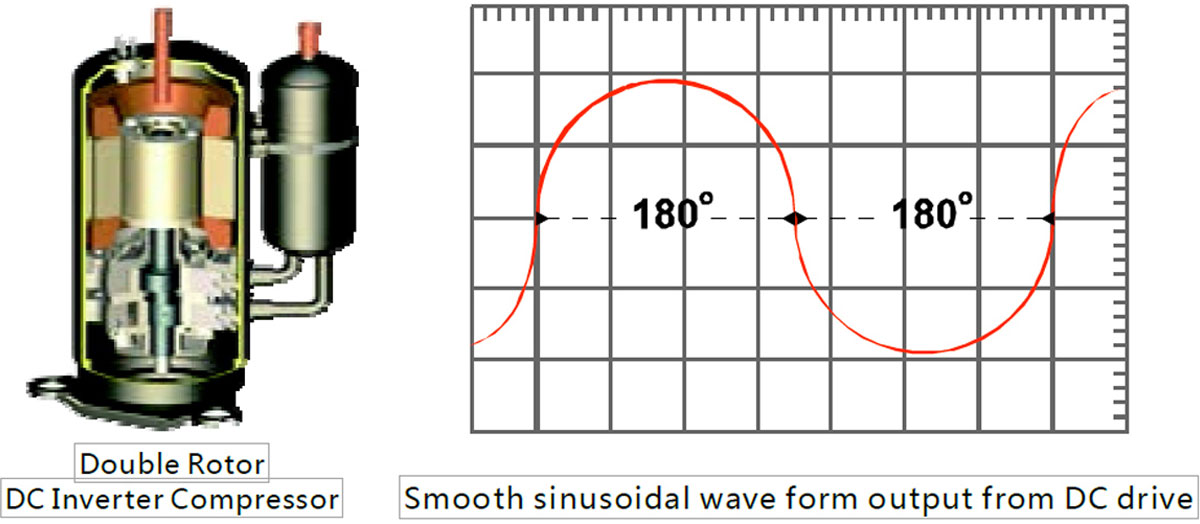

The variable compression ratio effectively avoids over-voltage and under-compression and improves efficiency. The minimum speed is 15rps, which can output capacity according to the actual load demand, and the energy-saving effect is remarkable. 180° sine wave DC frequency conversion technology to improve motor operating efficiency.
The time to enter a stable heating capacity is more than 50% shorter than the normal heat pump.

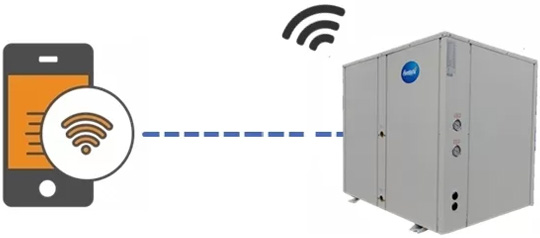

Fantastic Inverter water to water heat pump equipped wifi control function which more convenient for you to control and adjust your heat pump by phone anytime & anywhere.

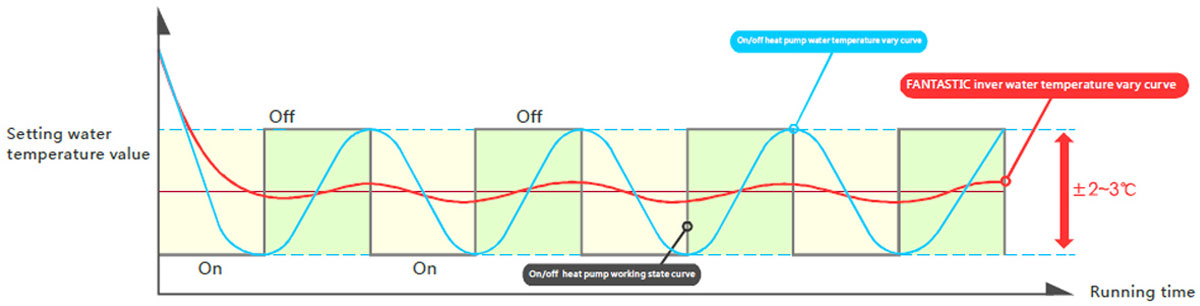

The whole series of Fantastic inverter heat pumps adopt the inlet water temperature control and the step-less regulation technology of DC frequency conversion. As the actual inlet water temperature keeps approaching the setting value, the compressor synchronously reduces the load, so that the actual inlet water temperature is maintained at ±0.5°of the setting value., the traditional on/off unit has only the on/off state, and the water temperature cannot be accurately adjusted. The system water temperature fluctuates within the range of ±2-3°C of the setting value.

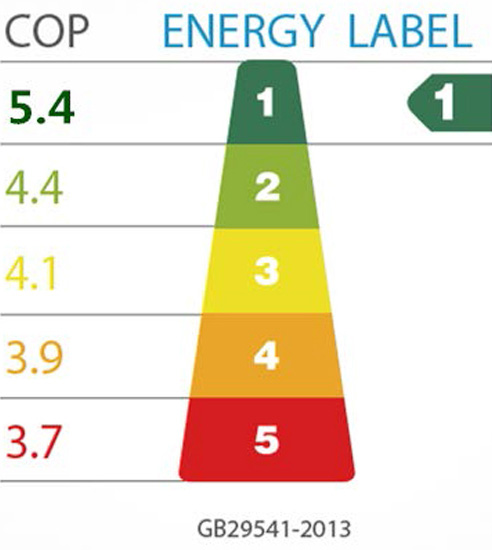

As good quality and highly efficient components, Fantastic inverter water-to-water heat pump has high energy-saving performance, which makes COP as high as 5.4.
| FIWHCD030 | FIWHCD050 | FIWHCD060 | FIWHCD080C | FIWHCD100C | FIWHCD120C | ||
| Power supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Heating when Water source side 10℃ Using side 35℃ | |||||||
| Heating capacity | KW | 9.8 | 16.3 | 19.5 | 26.0 | 32.6 | 39.1 |
| BTU/h | 33309.5 | 55552 | 66619 | 88861.5 | 111104 | 133238 | |
| COP | W/W | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Power input | KW | 1.78 | 2.96 | 3.55 | 4.73 | 5.92 | 7.10 |
| Current input | A | 8.1 | 13.5 | 16.1 | 9.0 | 11.2 | 13.5 |
| Heating when Water source side 10℃ Using side 45℃ | |||||||
| Heating capacity | KW | 9.5 | 15.8 | 18.9 | 25.2 | 31.5 | 37.8 |
| BTU/h | 32235 | 53760 | 64470 | 85995 | 107520 | 128940 | |
| COP | W/W | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Power input | KW | 2.25 | 3.75 | 4.50 | 6.00 | 7.50 | 9.00 |
| Current input | A | 10.2 | 17.0 | 20.5 | 11.4 | 14.2 | 17.1 |
| Heating when Water source side 15℃ Using side 45℃ | |||||||
| Heating capacity | KW | 11.0 | 18.4 | 22.1 | 29.4 | 36.8 | 44.1 |
| BTU/h | 37590 | 62685 | 75285 | 100275 | 125370 | 150465 | |
| COP | W/W | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 |
| Power input | KW | 2.30 | 3.83 | 4.59 | 6.13 | 7.66 | 9.19 |
| Current input | A | 10.4 | 17.4 | 20.9 | 11.6 | 14.5 | 17.4 |
| Cooling when Water source side 30℃ Using side 7℃ | |||||||
| Cooling capacity | KW | 8.2 | 13.7 | 16.4 | 21.8 | 27.3 | 32.8 |
| BUT/h | 27930 | 46620 | 55860 | 74550 | 93135 | 111825 | |
| EER | W/W | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Power input | KW | 1.82 | 3.03 | 3.64 | 4.85 | 6.07 | 7.28 |
| Current input | A | 8.3 | 13.8 | 16.5 | 9.2 | 11.5 | 13.8 |
| Maximum power input | KW | 3.3 | 5.5 | 6.6 | 8.7 | 10.9 | 13.1 |
| Maximum current input | A | 14.9 | 24.8 | 29.8 | 16.6 | 20.7 | 24.9 |
| Sound level | dB(A） | 46 | 48 | 48 | 48 | 50 | 50 |
| Water connections | inch | 1″ | 1″ | 1″ | 1″ | 1-1/4″ | 1-1/4″ |
| Water flow range (5~3℃△T) | m³/h | 1.55~2.60 | 2.58~4.30 | 3.10~5.20 | 4.10~6.90 | 5.5~8.6 | 6.6~10.3 |
| Refrigerant type | R410A/R32 | R410A/R32 | |||||
| FIWHCD150C | FIWHCD200C | FIWHCD250C | FIWHCD300C | FIWHCD500C | FIWHCD600C | ||
| Power supply | V/PH/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Heating when Water source side 10℃ Using side 35℃ | |||||||
| Heating capacity | KW | 48.8 | 65.1 | 81.4 | 97.7 | 162.8 | 195.3 |
| BTU/h | 166547.5 | 222099.5 | 277651.5 | 333203.5 | 555303 | 666407 | |
| COP | W/W | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Power input | KW | 8.88 | 11.84 | 14.80 | 17.75 | 29.59 | 35.51 |
| Current input | A | 16.9 | 22.5 | 28.1 | 33.7 | 56.2 | 67.4 |
| Heating when Water source side 10℃ Using side 45℃ | |||||||
| Heating capacity | KW | 47.3 | 63.0 | 78.8 | 94.5 | 157.5 | 189.0 |
| BTU/h | 161175 | 214935 | 268695 | 322455 | 537390 | 644910 | |
| COP | W/W | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Power input | KW | 11.25 | 15.00 | 18.75 | 22.50 | 37.50 | 45.00 |
| Current input | A | 21.4 | 28.5 | 35.6 | 42.7 | 71.2 | 85.5 |
| Heating when Water source side 15℃ Using side 45℃ | |||||||
| Heating capacity | KW | 55.1 | 73.5 | 91.9 | 110.3 | 183.8 | 220.5 |
| BTU/h | 188055 | 250740 | 313530 | 376215 | 626955 | 752325 | |
| COP | W/W | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 |
| Power input | KW | 11.48 | 15.31 | 19.14 | 22.97 | 38.28 | 45.94 |
| Current input | A | 21.8 | 29.1 | 36.4 | 43.6 | 72.7 | 87.2 |
| Cooling when Water source side 30℃ Using side 7℃ | |||||||
| Cooling capacity | KW | 41.0 | 52.5 | 65.6 | 78.8 | 131.3 | 163.8 |
| BUT/h | 139755 | 179130 | 223965 | 268695 | 447825 | 558915 | |
| EER | W/W | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Power input | KW | 9.10 | 11.67 | 14.58 | 17.50 | 29.17 | 36.40 |
| Current input | A | 17.3 | 22.2 | 27.7 | 33.2 | 55.4 | 69.1 |
| Maximum power input | KW | 16.4 | 21.0 | 26.3 | 31.5 | 52.5 | 65.5 |
| Maximum current input | A | 31.1 | 39.9 | 49.9 | 59.8 | 99.7 | 124.4 |
| Sound level | dB(A） | 52 | 53 | 55 | 55 | 62 | 62 |
| Water connections | inch | 1-1/2″ | 2″ | 3″ | 3″ | 4″ | 4″ |
| Water flow range (5~3℃△T) | m³/h | 7.7~12.0 | 11.0~17.2 | 13.8~21.5 | 16.5~25.7 | 25.0~43.0 | 28.9~43.0 |
| Refrigerant type | R410A/R32 | R410A/R32 | R410A/R32 | R410A/R32 | R410A/R32 | R410A/R32 | |
