20 years experience with UL & A+++
Fantastic® company has manufactured and sold over 65,000 EVI DC inverter heat pumps worldwide and the EVI inverter heating heat pump is certified with A+++ and CE, ROHS for Europe and UL for the North American market.
Stable operation under -35 ℃ ambient
Fantastic® EVI inverter heat pump with smart EVI inverter control way and EVI structure could work under ambient temperature range: -35 degrees~43 degrees.

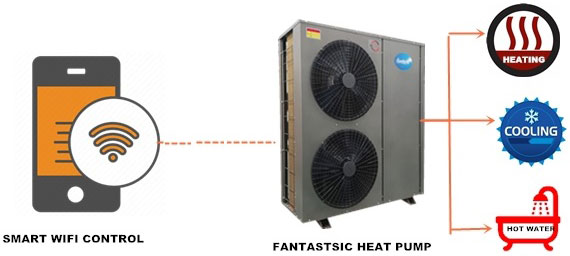

4-Core Full Inverter + Wifi Phone control
Fantastic® EVI inverter heat pump is a full inverter heat pump, not only with inverter compressor but also with inverter controller and DC fan motor, DC water pump, It’s a super perfect heat pump that all main components are the best quality, with the highest efficient, lowest noise.
Long life with famous brand high-quality components
CAREL control for option- Fantastic® EVI inverter heat pump equipped with CAREL controller and CAREL expansion valve for option, Panasonic compressor, SHIBAURA inverter fan motor, and WILO water pump, SWEP plate heat exchanger for option, and with element under button plate, and so on. All the heat pumps with famous international brand components.
Super quiet
Fantastic® heat pumps use an Inverter compressor, DC fan motor and owl fan blade, DC water pump, you can’t hear it run from 10 feet away, virtually silent.

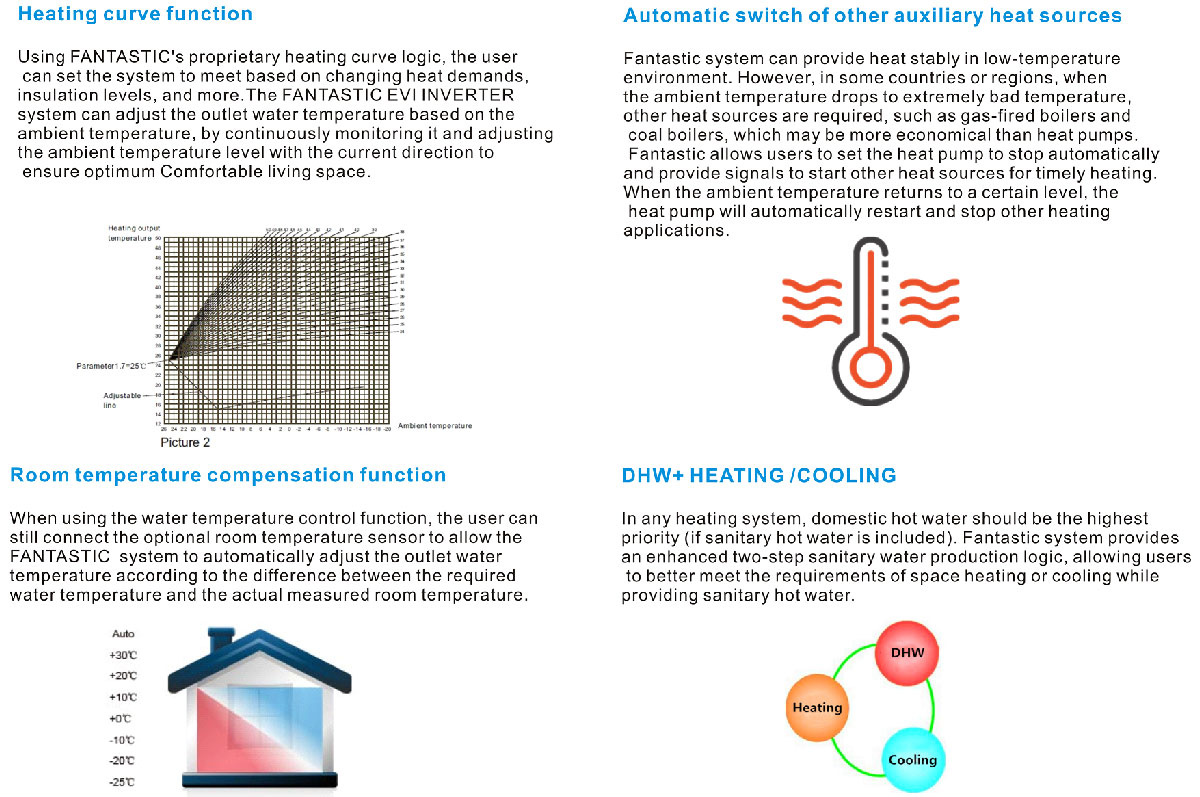

Save Money & High Performance & Eco curve mode
Targeting the European and North American markets, Fantastic has not only adopted R32 green gas and inverter EVI technology, and obtained the North American TUV UL certification, but also has been rated as A+++ energy label, BAFA, SG-ready by TUV from 6kw to 36 kW models.
With the highest energy rating in the European market, A+++, the unit is currently the most energy efficient and can significantly reduce customers’ energy bills. The maximum COP is 5.65 and the SCOP is 4.88 of performance (COP). The high-efficiency DC variable frequency heat pump saves more than 30% energy than other air-source heat pumps.
Wide working ambient temperature range: -35℃~43℃; Intelligent control, any weather available, automatic load adjusts under different climates and environments to satisfy the demands of summer cooling, winter heating and hot water throughout the year.

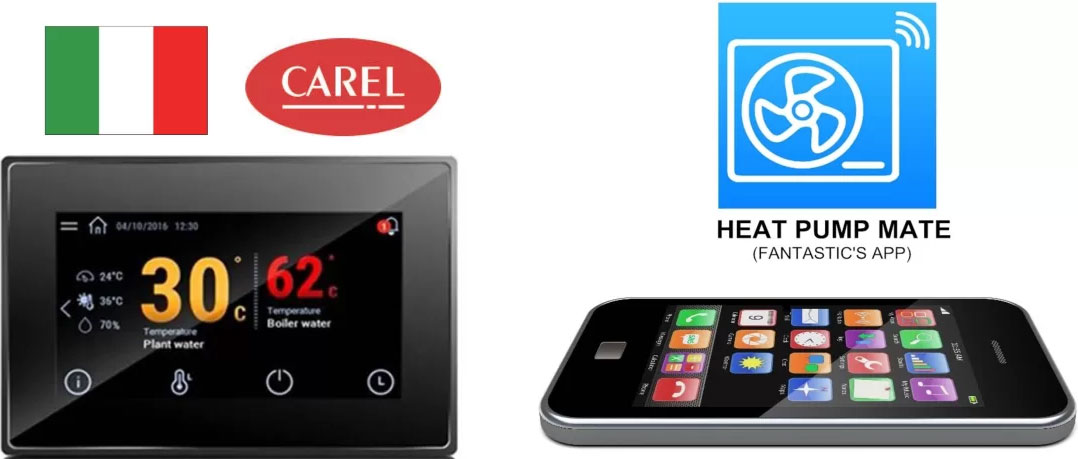

Using the famous high-quality Carel controller as an option, Fantastic has its own APP (HEAT PUMP MATE) to control CAREL’s controller, which can be in German or English. It’s high efficient and convenient for customers also with curve control (would change the water temperature as the ambient temperature automatically) and also with timing sterilization function and API function wifi control by phone, and so on.
The intelligent controller with RS485 is used to realize the linkage control between the heat pump unit and the terminal application to improve the operation efficiency. Through the WIFI APP, users can operate their devices from their smartphones anytime and anywhere.

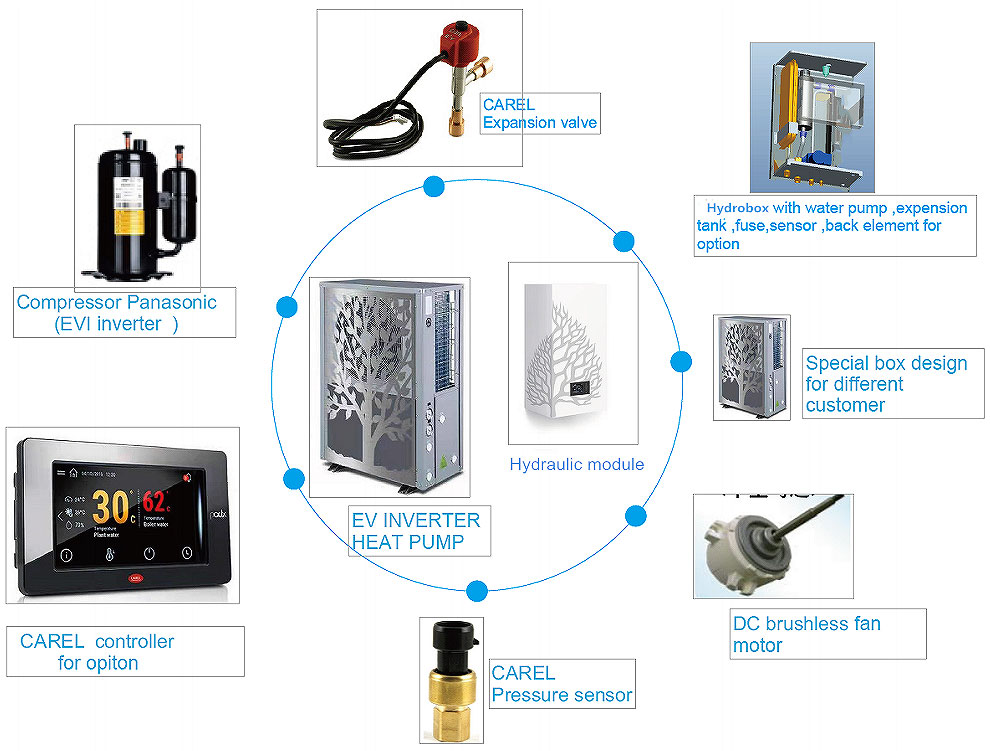

1. Compressor: Japanese brand Panasonic twin-rotary dc inverter compressor.
2. Controller: Italian brand CAREL controller OR HUAWEI controller for option.
3. Heat exchanger: Sweden brand SWEP heat exchanger for option.
4. Expansion valve: America brand Emerson for option.
5. Temperature sensor: Japan brand Ohizumi.
6. Circuit breaker: Germany brand Siemens/France brand Schneider for option.
7. Fan motor: Germany brand Siemens / Japanese brand SHIBAURA DC fan motor for option.
8. AC contactor: Siemens/Schneider for option.
9. Leakage protection: Siemens/Schneider for option.
10. Circuit breaker: Germany brand Siemens/ brand Schneider for option.
11. Relay:Siemens/Schneide for optionr.
12. Oil separator: America brand Emerson for option.
13. Water pump: German brand Wilo Or Grundfos.

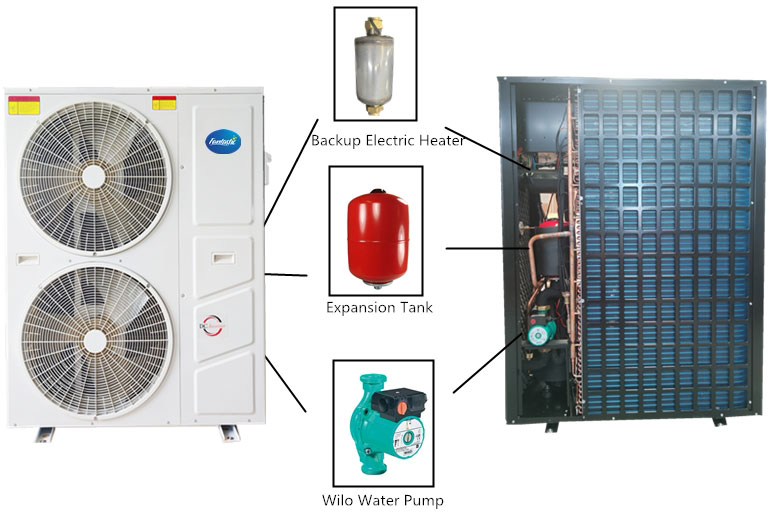

It’s more convenient to customer install by built-in Backup Electric element + 3-way valve + Water Pump + Expansion tank Option.
Fantastic EVI + DC Inverter heat pump adopts step-less inverter compressor, step-less inverter control system and brush-less fan motor and DC speed water pump. It can not only provide amazing energy saving but also be as silent as a fridge, 12dB (A) lower than a traditional On / Off heat pump.
Once the heat pump is on, Fantastic Inverter unit can quickly pick and choose the best compressor and fan motor operating frequencies and the heat pump EEV opens automatically according to the heating or cooling demand by smart inverter control technology for the first-time heating, inverter fast heating can save 50% heating time than the traditional heat pump.

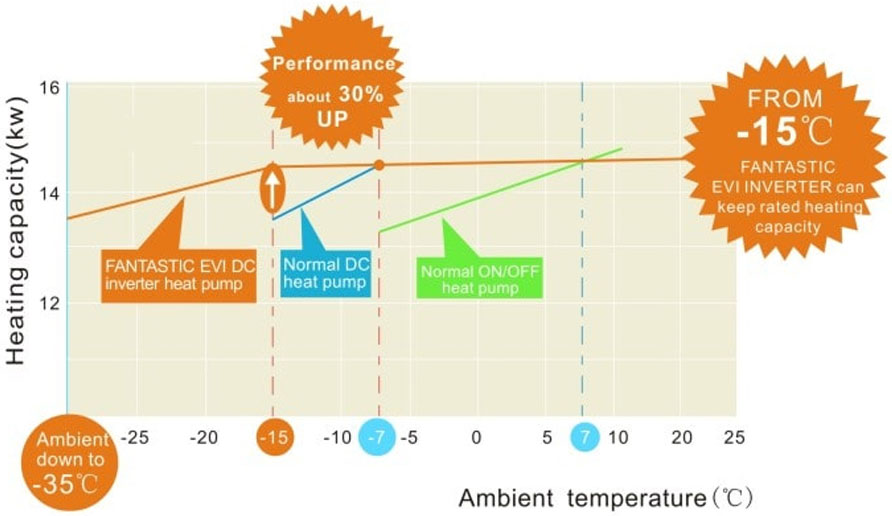

Thanks to Fantastic unique EVI + DC Inverter Technology which can control well the frequency and EEV according to the ambient temperature and water temperature and the refrigerant volume of the major loop of the refrigerant system, even when the ambient temperature is under -15℃, heat pump can still maintain same rated good heating capacity output without any auxiliary electric heater.
The heat pump utilizes smart defrosting by controlling the frequency and EEV technology to enter the best defrosting status quickly, reduce the defrosting times and extend the effective heating time, fast recovery of water-supply temperature, improve heat pump heating efficiency and keep a comfortable temperature.

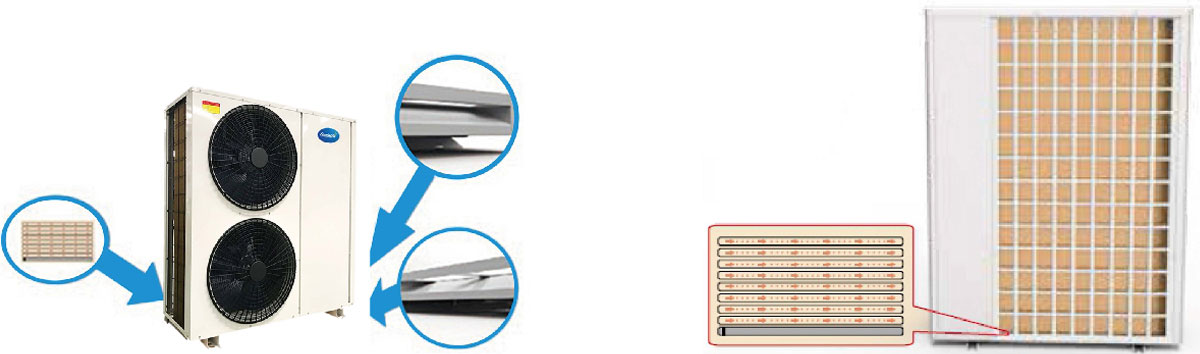

With block-up slopes on 2 sides of the button + an anti-freezing element on the bottom of the heat pump and the use of special liquid distribution technology, when the unit works in heating mode, the temperature of the refrigerant in the heat exchanger’s bottom copper tubes will not decrease in order to ensure no frosting on it and smooth drainage.
After the customer buys the heat pump, they also need complicated and high cost’s installation, Fantastic hydraulic module that could put all installation things – water pump, expansion valve, 3-way valve, wiring box, sensors, electric heater, and so on in one box, customer buys the heat pump and our hydraulic module together, then they just need to connect the water pipe would be ok.
| Model | FEIHC020S | FEIHCD035S | FEIHCD040S | FEIHCD050S | FEIHCD060S | FEIHCD080S | |
| Power Input | 220V1PH/60hz | 220V1PH/60hz | 220V1PH/60hz | 220V1PH/60hz | 220V1PH/60hz | 220V1PH/60hz | |
| Heating Condition | Air DB20℃/WB 15℃, water from 15℃ to 55℃ | ||||||
| Heating capacity | kW | 8.2 | 12.3 | 16.4 | 20.5 | 24.6 | 32.8 |
| Input power (Heating) | kW | 1.8 | 2.67 | 3.57 | 4.48 | 5.37 | 7.16 |
| Input Current (Heating) | A | 8.10 | 12.2 | 16.2 | 20.3 | 24.4 | 32.6 |
| COP | W/W | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 |
| Heating Condition | Air DB 7℃/WB 6℃, water inlet: 30℃, water outlet: 35℃ | ||||||
| Heating capacity | KW | 6.5 | 10.9 | 12.0 | 16.3 | 19.5 | 28.1 |
| Input power（Heating） | KW | 1.6 | 2.88 | 2.92 | 3.96 | 4.75 | 6.83 |
| Input current（Heating） | A | 7.2 | 13.1 | 13.3 | 18.0 | 21.6 | 31.0 |
| COP | W/W | 4.12 | 4.12 | 4.11 | 4.12 | 4.10 | 4.12 |
| Heating Condition | Air DB 7℃/WB 6℃, water inlet:40℃, water outlet: 45℃ | ||||||
| Heating Capacity | KW | 5.4 | 10.5 | 11.2 | 14.0 | 17.0 | 24.0 |
| Input Power (Heating) | KW | 1.64 | 3.25 | 3.3 | 4.18 | 5.00 | 7.27 |
| Input Current (Heating) | A | 7.5 | 14.8 | 15.2 | 19.0 | 22.7 | 33.0 |
| COP | W/W | 3.29 | 3.23 | 3.35 | 3.35 | 3.40 | 3.30 |
| Heating Condition | Air DB -12℃/WB -14℃, Water inlet: 36℃, water outlet: 41℃ | ||||||
| Heating capacity | KW | 3.8 | 6.5 | 7.6 | 9.5 | 11.5 | 18.0 |
| Input power（Heating） | KW | 1.80 | 3.08 | 3.6 | 4.46 | 5.45 | 8.40 |
| Input current（Heating） | A | 8.2 | 14.0 | 16.2 | 20.3 | 24.8 | 38.2 |
| COP② | W/W | 2.11 | 2.11 | 2.13 | 2.13 | 2.11 | 2.14 |
| Cooling Condition | Air DB 35℃/–, water inlet: 12℃, water outlet: 7℃ | ||||||
| KW | 5.0 | 8.0 | 10.0 | 12.5 | 15.0 | 20.0 | |
| Input power | KW | 1.99 | 3.00 | 4.0 | 4.98 | 5.98 | 7.90 |
| Input current | A | 9.1 | 13.6 | 18.1 | 22.6 | 27.2 | 35.9 |
| Max running current | A | 13.6 | 20.5 | 27.4 | 34.0 | 40.7 | 53.9 |
| Controller | Inverter Control | ||||||
| Compressor | DC inverter compressor | ||||||
| Fan motor | DC fan motor | ||||||
| Refrigerant flow control | Electric Expansion Valve | ||||||
| Heat exchanger | High-efficient tube in shell heat exchanger | ||||||
| Refrigerant | R32/R410a | ||||||
| Water inlet/outlet | inch | 1″ | 1″ | 1″ | 1″ | 1-1/2″ | 1-1/2″ |
| Water flow volume | m³/h | 0.86 | 1.38 | 1.72 | 2.15 | 2.58 | 3.44 |
| MODEL | FEIHC020S | FEIHC035S | FEIHC035S3 | FEIHC040S | FEIHC040S3 | FEIHC050S | FEIHC050S3 |
| Power input [V/PH/Hz] | 220-240V,1N~/50Hz 60Hz | 220-240V,1N~/50Hz 60Hz | 380-415V,3N~/50Hz 60HZ | 220-240V,1N~/50Hz 60Hz | 380-415V,3N~/50Hz 60HZ | 220-240V,1N~/50Hz 60Hz | 380-415V,3N~/50Hz 60HZ |
| SCOP (Averange) | 4.6 | 4.65 | 4.65 | 4.85 | 4.85 | 4.76 | 4.76 |
| Heating Capacity | |||||||
| Heating Capacity Range | 2500 ~ 6780 W | 2500 ~10300 W | 2500 ~10300 W | 4000 ~ 12600 W | 4000 ~ 12600 W | 5000 ~ 16500 W | 5000 ~ 16500 W |
| Heating condition: air DB/WB 7/6°C, water in/out 30/35°C | |||||||
| Heating capacity [kW] | 6 | 10 | 10 | 12 | 12 | 15 | 15 |
| Input power [kW] | 1.36 | 2.08 | 2.08 | 2.67 | 2.67 | 3.3 | 3.3 |
| Input current [A] | 6.31 | 9.65 | 3.35 | 12.38 | 4.31 | 15.00 | 5.39 |
| COP | 4.41 | 4.42 | 4.42 | 4.5 | 4.5 | 4.4 | 4.4 |
| Heating condition: air DB/WB 7/6°C, water in/out 50/55°C | |||||||
| Heating capacity [kW] | 5.5 | 8.5 | 8.5 | 10.9 | 10.9 | 13.5 | 13.5 |
| Input power [kW] | 1.96 | 2.98 | 2.98 | 3.73 | 3.73 | 4.82 | 4.82 |
| Input current [A] | 9.08 | 13.82 | 4.82 | 17.30 | 6.03 | 21.91 | 7.79 |
| COP | 2.81 | 2.85 | 2.85 | 2.92 | 2.92 | 2.8 | 2.8 |
| Cooling Capacity | |||||||
| Cooling Capacity Range : | 1800 ~ 6200 W | 2200 ~ 8600 W | 2200 ~ 8600 W | 3500 ~ 10800 W | 3500 ~ 10800 W | 4200 ~ 13000 W | 4200 ~ 13000 W |
| Cooling condition: air DB 35°C, water in/out 12/7°C | |||||||
| Cooling capacity [kW] | 5 | 7.6 | 7.6 | 10.1 | 10.1 | 12.6 | 12.6 |
| Input power [kW] | 1.73 | 2.59 | 2.59 | 3.36 | 3.36 | 4.26 | 4.26 |
| Input current [A] | 8.02 | 12.01 | 4.19 | 15.58 | 5.43 | 19.36 | 6.89 |
| EER | 2.88 | 2.93 | 2.93 | 3.01 | 3.01 | 2.96 | 2.96 |
| Hot Water Capacity | |||||||
| Hot Water Capacity Range ： | 2900 ~ 8200 W | 3727 ~ 12300 W | 3727 ~ 12300 W | 4969 ~ 16400 W | 4969 ~ 16400 W | 6212 ~ 20500 W | 6212 ~ 20500 W |
| Heating condition: air DB/WB 20/15°C, water from 15°C to 55°C | |||||||
| Heating capacity [kW] | 8.2 | 12.3 | 12.3 | 16.4 | 16.4 | 20.5 | 20.5 |
| Input power [kW] | 1.70 | 2.69 | 2.69 | 3.50 | 3.50 | 4.48 | 4.48 |
| COP | 4.82 | 4.57 | 4.57 | 4.69 | 4.69 | 4.58 | 4.58 |
| Max running current [A] | 23 | 26.5 | 18.9 | 33.5 | 20.1 | 21.9 | 21.9 |
| Noise [dBA] | 47 | 48 | 50 | 52 | 52 | ||
| Controller | DC inverter controller (WIFI) | ||||||
| Fan motor | Match-Well / WELLING | ||||||
| Refrigerant Flow Control | EEV | ||||||
| Heat exchanger | Plate Heat Exchanger(Water) Fin-tube heat exchanger(Air) |
||||||
| Water pump (Built-in for option) | Wiilo (Built-in for option) | ||||||
| Expansion tank (Built-in for option) | 2L | 2L | 2L | 2L | 2L | 5L | 5L |
| Auxiliary electric element (Built-in for option) | 3KW | 3KW | 3KW | 3KW | 3KW | 3KW | 3KW |
| Refrigerant | R32 | ||||||
| Refrigerant mass [kg] | 0.95 | 1.3 | 1.6 | 1.6 | 2.15 | 2.15 | 2.15 |
| Expansion tank [litre] | 2L | 2L | 2L | 2L | 2L | 5L | 5L |
| Fan max airflow [m3/h] | 2400 | 3800 | 4800 | 6200 | |||
| Water inlet/outlet [inch] | G1 | ||||||
| Water flow [m3/h] | 1 | 1.5 | 1.5 | 2 | 2 | 2.4 | 2.4 |
| min-max range of water flow[m3/h] | 0.6-1.4 | 0.75-2.1 | 0.75-2.1 | 0.96-2.8 | 0.96-2.8 | 1.3-3.5 | 1.3-3.5 |
| nominal water flow[m3/h] | 0.86 | 1.4 | 1.4 | 1.75 | 1.75 | 2.15 | 2.15 |
| min-max water pressure | 0.1-0.6MPa | ||||||
| nominal water pressure | 0.2MPa | ||||||
| Product size [HxWxD mm] | 950*405*652 | 1050*425*838 | 1050*425*943 | 1050*425*1343 | |||
| Packing size [HxWxD mm] | 1030*460*800 | 1120*490*990 | 1120*490*1085 | 1120*490*1500 | |||
| Product weight [kg] | 78 | 100 | 109 | 145 | |||
| Packing weight [kg] | 85 | 108 | 128 | 152 | |||
| MODEL | FEIHC060S | FEIHC060S3 | FEIHC080S3 | FEIHC100S3 | FEIHC120S3 |
| Power input [V/PH/Hz] | 220-240V,1N~/50Hz 60Hz | 380-415V,3N~/50Hz 60HZ | 380-415V,3N~/50Hz 60HZ | 380-415V,3N~/50Hz 60HZ | 380-415V,3N~/50Hz 60HZ |
| SCOP(Averange) | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 |
| Heating Capacity | |||||
| Heating Capacity Range : | 6200 ~ 20500 W | 6200 ~ 20500 W | 8266 ~ 27333 W | 10332 ~ 34166 W | 12398 ~ 40999 W |
| Heating condition: air DB/WB 7/6°C, water in/out 30/35°C | |||||
| Heating capacity [kW] | 18 | 18 | 24 | 30 | 36 |
| Input power [kW] | 3.9 | 3.9 | 5.2 | 6.5 | 7.8 |
| Input current [A] | 17.73 | 6.42 | 8.56 | 10.70 | 12.84 |
| COP | 4.62 | 4.62 | 4.62 | 4.62 | 4.62 |
| Heating condition: air DB/WB 7/6°C, water in/out 50/55°C | |||||
| Heating capacity [kW] | 16.3 | 16.3 | 21.7 | 27.16 | 32.592 |
| Input power [kW] | 5.64 | 5.64 | 7.5 | 9.4 | 11.28 |
| Input current [A] | 25.64 | 9.12 | 12.2 | 15.19 | 18.23 |
| COP | 2.89 | 2.89 | 2.89 | 2.89 | 2.89 |
| Cooling Capacity | |||||
| Cooling Capacity Range : | 5500 ~ 17500 W | 5500 ~ 17500 W | 7333 ~ 23333 W | 9166 ~ 29166 W | 10999 ~ 34999 W |
| Cooling condition: air DB 35°C, water in/out 12/7°C | |||||
| Cooling capacity [kW] | 15 | 15 | 20.00 | 25 | 30 |
| Input power [kW] | 4.93 | 4.93 | 6.57 | 8.21 | 9.852 |
| Input current [A] | 22.41 | 7.97 | 10.62 | 13.28 | 15.94 |
| EER | 3.04 | 3.04 | 3.04 | 3.04 | 3.04 |
| Hot Water Capacity | |||||
| Hot Water Capacity Range ： | 7454 ~ 24600 W | 7454 ~ 24600 W | 9938 ~ 32800 W | 12422 ~ 41000 W | 14906 ~ 49200 W |
| Heating condition: air DB/WB 20/15°C, water from 15°C to 55°C | |||||
| Heating capacity [kW] | 24.6 | 24.6 | 32.8 | 41 | 49.2 |
| Input power [kW] | 5.37 | 5.37 | 7.16 | 8.95 | 10.74 |
| COP | 4.58 | 4.58 | 6.11 | 7.64 | 9.16 |
| Max running current [A] | 23.1 | 23.1 | 30.8 | 38.5 | 46.2 |
| Noise [dBA] | 53 | 53 | 54.0 | 67.5 | 81 |
| Controller | DC inverter controller (WIFI) | ||||
| Fan motor | Match-Well / WELLING | ||||
| Refrigerant Flow Control | EEV | ||||
| Heat exchanger | Plate Heat Exchanger(Water) Fin-tube heat exchanger(Air) |
||||
| Water pump (Built-in for option) | Wiilo (Built-in for option) | ||||
| Expansion tank (Built-in for option) | 5L | 5L | 5L | / | / |
| Auxiliary electric element (Built-in for option) | 3KW | 3KW | 3KW | / | / |
| Refrigerant | R32 | ||||
| Water flow [m3/h] | 3 | 3 | 4 | 5 | 6 |
| min-max range of water flow[m3/h] | 1.5-4.2 | 1.5-4.2 | 2-5.6 | 2.5-7 | 1.8-5.04 |
