20 Years Experience
Fantastic company has manufactured and OEM sold over 98,000 pool heat pumps worldwide.
Certified UL from TUV for the North American market and CE for the European Market
High Efficiency of Step-Less DC inverter
As the high COP of FANTASTIC® inverter pool heat pump by this 3-core full inverter technology (inverter control, inverter compressor, DC fan motor), it’s 70% higher COP than Normal On/Off Heat Pump, 50% higher COP than Normal Inverter Heat Pump.

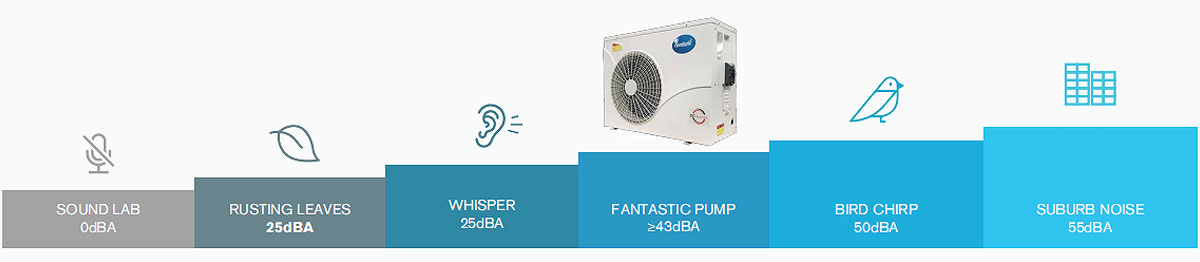

10 Times Quieter
Fantastic swimming pool inverter pool heat pump provides a good swimming environment, and your neighbors will love it, too!
Long Life to 12~15 Years by Good Quality Components

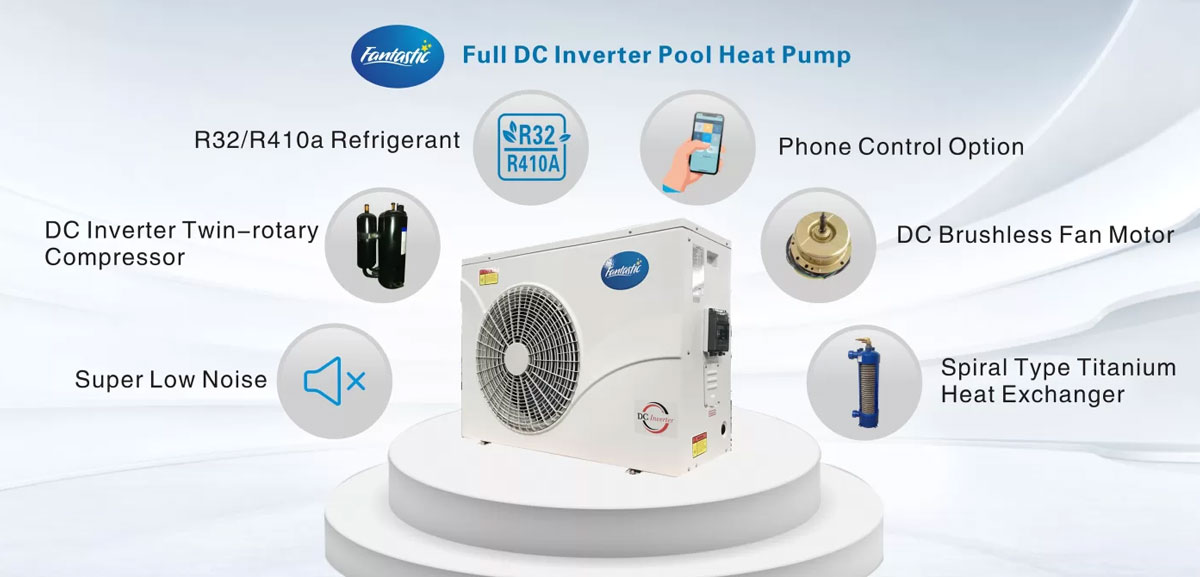

FANTASTIC® pool inverter heat pump heats your pool rain or shine, and using spiral titanium heat exchanger, the casing can be galvanized metal or stainless steel for option, golden fin air heat exchanger, EEV, soft start, and so on.
Built-in Wifi Control for Option
You could control your pool anytime, anywhere easily by phone.
Work Under -15℃
Fantastic inverter swimming pool heat pump can work at low ambient temperatures, even at -15℃ can still provide inverter pool heating. This results in less heat in colder months and maximizes your swimming season.
Heating 40℃ Water for Option
Fantastic inverter swimming pool heat pump can set the water temperature to 40℃for Spa or other applications if customers require it.
50% Faster in Heating
Once the heat pump is on, Fantastic Inverter unit can quickly pick and choose the best compressor and fan motor operating frequencies and the heat pump EEV opening automatically according to the heating or cooling demand by smart inverter control technology for the first time heating, FANTASTIC inverter heat pump can save 50% heating time than traditional heat pump on first heating.

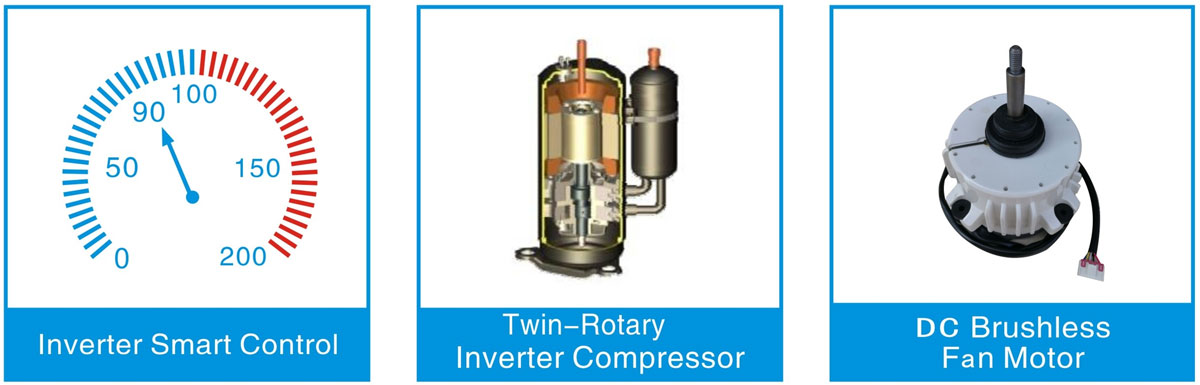

Thanks for FANTASTIC patented smart inverter technology and full inverter components on twin-rotary inverter compressor and DC brushless fan motor, Fantastic heat pump have 3 flexible operation modes: Powerful-Smart-Silent for your selection of comfortable and suitable frequency speed.

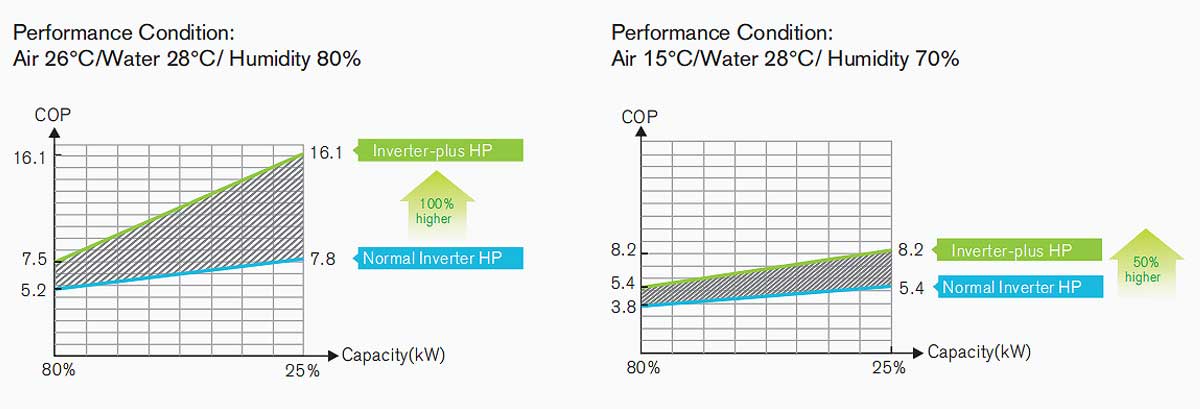

Thanks to Fantastic patented smart inverter control technology, 1kw input brings up to 16kw output. When maintaining pool temperature in most of the pool season, the Inverter pool heat pump runs at a low speed which leads to the best energy-saving performance and most silent pool environment. It’s more than double the energy saving compared with a traditional On / Off heat pump.
Fantastic inverter pool heat pump has a Wi-Fi Remote control, which means you can control and know the working situation of your inverter pool heat pump on your Smartphone at any time and anywhere, even if you are away from home.
Fantastic DC Inverter swimming pool heat pump adopts a step-less inverter compressor, step-less inverter control system and brushless fan motor. By smart conversion of compressor speed, fan motor speed and system pressure, it can not only provide an amazing energy-saving effect but also silence as low as a fridge, 12dB (A) lower than a traditional On / Off heat pump.
Once the heat pump is on, Fantastic Inverter unit can quickly pick and choose the best compressor and fan motor operating frequencies and the heat pump EEV opens automatically according to the heating or cooling demand by smart inverter control technology for the first-time heating, inverter fast heating can save 50% heating time than the traditional heat pump.
| FIP7S | FIP10S | FIP13S | FIP17S | FIP21S | FIP30S | FIP35S | FIP35S3 | |
| Power Supply | 220～240V / 1/ 50 Hz | 220～240V / 1/ 50 Hz | 220～240V / 1/ 50 Hz | 220～240V / 1/ 50 Hz | 220～240V / 1/ 50 Hz | 220～240V / 1/ 50 Hz | 220～240V / 1/ 50 Hz | 380V / 3/ 50 Hz |
| Heating Capacity | Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | |||||||
| Heating Capacity (kW) | 7.82～1.65 | 10.58～2.42 | 13.66～3.14 | 17.16～3.91 | 21.42～4.86 | 30.05～6.83 | 35.80～8.24 | 35.80～8.24 |
| Power Input (kW) | 1.12～0.103 | 1.519～0.149 | 1.98～0.193 | 2.48～0.245 | 3.07～0.30 | 4.30～0.42 | 5.10～0.51 | 5.10～0.51 |
| COP | 16.02～6.98 | 16.24～6.97 | 16.27～6.99 | 15.96～6.99 | 15.96～6.98 | 16.26～6.99 | 16.54～6.98 | 16.54～6.98 |
| Heating Capacity | Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | |||||||
| Heating Capacity (kW) | 5.78～1.31 | 7.86～1.80 | 10.14～2.31 | 12.8～3.91 | 15.92～3.61 | 22.05～5.00 | 28.61～6.60 | 28.61～6.60 |
| Power Input (kW) | 1.15～0.17 | 1.57～0.236 | 2.03～0.30 | 2.56～0.38 | 3.19～0.47 | 4.42～0.65 | 5.73～0.87 | 5.73～0.87 |
| COP | 7.70～5.02 | 7.62～5.00 | 7.7～5.00 | 7.65～5.00 | 7.68～4.99 | 7.69～4.99 | 7.67～4.98 | 7.67～4.98 |
| Cooling Capacity | Air 35℃, Water 29℃ in, 27℃ out | |||||||
| Cooling Capacity (kW) | 4.30～1.08 | 5.94～1.50 | 7.26～1.85 | 9.49～2.38 | 11.60～2.96 | 15.88～3.92 | 20.13～4.67 | 20.13～4.67 |
| Power Input (kW) | 1.14～0.16 | 1.57～0.22 | 1.89～0.265 | 2.51～0.345 | 3.06～0.43 | 4.19～0.56 | 5.27～0.67 | 5.27～0.67 |
| EER | 6.75~3.77 | 6.82～3.78 | 6.98～3.84 | 6.90～3.78 | 6.93～3.79 | 6.99～3.79 | 6.99～3.81 | 6.99～3.81 |
| Rated Power Input (kW) | 1.2 | 1.6 | 2.1 | 2.6 | 3.2 | 4.4 | 5.7 | 5.7 |
| Rated Current (A) | 5.4 | 7.3 | 9.4 | 11.7 | 14.6 | 20.1 | 26 | 15 |
| Refrigerant | R32 | R32 | R32 | R32 | R32 | R32 | R32 | R32 |
| Heat Exchanger | Titanium | Titanium | Titanium | Titanium | Titanium | Titanium | Titanium | Titanium |
| Air Flow Direction | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
| Water Flow Volume (m3/h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 9 | 12 | 12 |
| Kind of Defrost | by 4-way valve | |||||||
| Working Temperature Range (℃） | -15～43 | -15～43 | -15～43 | -15～43 | -15～43 | -15～43 | -15～43 | -15～43 |
| Noise Level (dBa) at 1m | <36～<45 | <37～<46 | <39～<47 | <40～<48 | <41～<49 | <42～<50 | <42～<50 | <42～<50 |
| Noise Level (dBa) at 10m | <19～<26 | <20～<26 | <20～<28 | <21～<30 | <23～<31 | <24～<33 | <24～<33 | <24～<33 |
| Casing Material | ABS plastic | ABS plastic | ABS plastic | ABS plastic | ABS plastic | ABS plastic | ABS plastic | ABS plastic |
| Water Proof Level | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Model | FIP40T3 | FIP55T3 | FIP65T3 | FIP80T3 | FIP110T3 | FIP135T3 | FIP160T3 | FIP270T3 | FIP320T3 |
| Power Supply | 380-415V~/3Ph~50Hz (60HZ) | 380-415V~/3Ph~50Hz (60HZ) | 380-415V~/3Ph~50Hz (60HZ) | 380-415V~/3Ph~50Hz | 380-415V~/3Ph~50Hz | 380-415V~/3Ph~50Hz | 380-415V~/3Ph~50Hz | 380-415V~/3Ph~50Hz | 380-415V~/3Ph~50Hz |
| Operating Air Temperature (℃) | -15~55 | -15~55 | -15~55 | -15~55 | -15~55 | -15~55 | -15~55 | -15~55 | -15~55 |
| Heating Capacity | Air 27℃, Water 26℃, Humidity 80% | ||||||||
| Boost Mode Capacity (kW) | 40 | 55 | 65 | 80 | 110 | 135 | 160 | 270 | 320 |
| Heating Capacity (kW) | 6.3~40 | 8.4~55 | 10.5~65 | 12.6~80 | 16.8~110 | 21~135 | 25.2~160 | 42~270 | 50.4~320 |
| Consumed Power (kW) | 0.39~6.5 | 0.52~8.94 | 0.65~10.56 | 0.78~13.61 | 1.04~17.88 | 1.3~21.95 | 1.56~26.01 | 2.6~43.9 | 3.14~52.03 |
| COP | 6.15~16.11 | 6.15~16.11 | 6.15~16.11 | 6.15~16.11 | 6.15~16.11 | 6.15~16.11 | 6.15~16.11 | 6.15~16.11 | 6.15~16.11 |
| Heating Capacity | Air 15℃, Water 26℃, Humidity 70% | ||||||||
| Boost Mode Capacity (kW) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 200 | 240 |
| Heating Capacity (kW) | 4.81~30 | 6.41~40 | 8.02~50 | 9.62~60 | 12.84~80 | 16.05~100 | 19.2~120 | 32.1~200 | 51.36~240 |
| Consumed Power (kW) | 0.96~2.96 | 1.27~3.95 | 1.59~4.93 | 1.91~5.92 | 2.59~16.16 | 3.24~20.2 | 3.87~24.24 | 6.48~40.4 | 10.37~48.48 |
| COP | 4.95~8.45 | 4.95~8.45 | 4.95~8.45 | 4.95~8.45 | 4.95~8.45 | 4.95~8.45 | 4.95~8.45 | 4.95~8.45 | 4.95~8.45 |
| Cooling Capacity | Air 43℃, Water 26℃, Humidity 70% | ||||||||
| Boost Mode Capacity (kW) | 21 | 28 | 35 | 42 | 56 | 70 | 84 | 140 | 168 |
| Cooling Capacity(kW) | 7.63~15.12 | 10.17~20.15 | 12.72~25.19 | 15.26~30.23 | 20.36~56 | 25.5~70 | 30.5~84 | 50.9~140 | 61~168 |
| Consumed Power(kW) | 1.46~3.68 | 1.95~4.91 | 2.43~6.13 | 2.92~7.36 | 3.93~13.49 | 4.93~16.86 | 5.89~20.24 | 9.84~33.73 | 11.7~40.48 |
| EER | 4.15~5.13 | 4.15~5.13 | 4.15~5.13 | 4.15~5.13 | 4.15~5.13 | 4.15~5.13 | 4.15~5.13 | 4.15~5.13 | 4.15~5.13 |
| Casing Type | Metal sheet | ||||||||
| Compressor | DC Inverter Type | ||||||||
| Fan Direction | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical |
| Sound Pressure 1m dB(A) | 55 | 58 | 58 | 60 | 65 | 68 | 68 | 70 | 72 |
| Water Flow Volume (m3/h) | 14 | 17 | 21 | 25 | 33 | 41.25 | 49.5 | 82.5 | 99 |
| Refrigerant Gas | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A |
