Applications:
18 years experience – Fantastic company has manufactured over 58,000 air-to-water heat pumps worldwide.
Affordability – Save energy & high performance – As the high COP of Fantastic air source heat pump water heater or water chiller, it can heat the water for about 30% of the cost of heating with gas and 75% of electric water heater, High COP means more energy saving.
Ex. $ 1 input – $ 4.1 of energy output at COP of 4.1.
Long life with famous brand high-quality components – CAREL controller and CAREL expansion valve for option, Copland or Panasonic compressor, SWEP plate heat exchanger, and WILO water pump, and so on. All the heat pumps are equipped with famous international brand components, and we also can manufacture the casing with stainless steel. We have much experience with titanium heat exchanger heat pumps for someplace where water quality is the pool or water requirement is special.
Certificate – Fantastic heat water heater certified with CE, ROHS for Europe and SAA, C-tick for the Australian market.
The heating capacity of Fantastic water to water heat pump is up to 500kW and larger. Suitable for different sizes of project demands, no matter for household or commercial use.
Fantastic heat pump water heater has high energy-saving performance, which makes COP as high as 4.58.
Fantastic advanced heat pump technology can realize low operation costs. Electricity cost is only 75% of the electric water heater.
Intelligent working mode with winter heating curve control. According to the changes in outdoor ambient temperature, the heat pump will calculate and supply the most suitable water temperature automatically to save more energy and provide more comfortable and suitable heating/cooling.

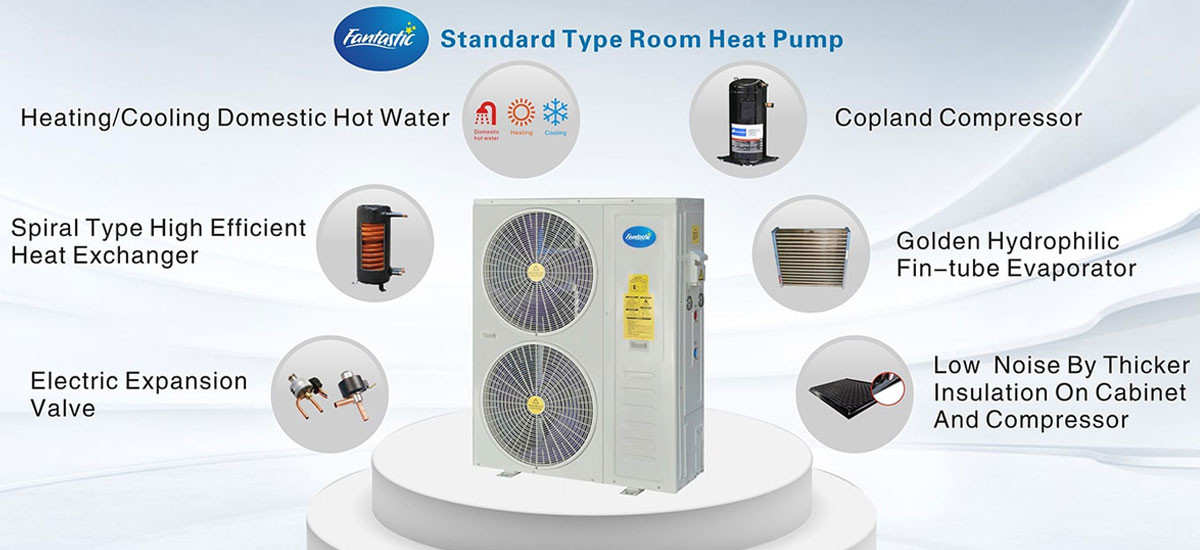

Fantastic spiral type highly efficient heat exchanger with an increased heat exchanger area to improve the heat transfer ability and evenly distribute over the surface of the copper, reducing water film, and improving efficiency.
Fantastic EVI heat pump increases the heating capacity and extends the operating life by TEV, increases COP and limits the discharge temperature under a safe level by EEV, and lowers the defrosting time to make the heat pump put more time into heating and more energy-saving.
| Model 1 | FCD010S | FCD015S | FCD020S | FCD030S | FCD035S | FCD040S | FCD050S3 | FCD060S3 | |
| Rated Output Water | L/h | 75 | 115 | 150 | 225 | 263 | 300 | 375 | 450 |
| Heating Condition: air DB 20℃/WB 15℃, water from 15℃to 55℃ | |||||||||
| Heating Capacity | kW | 3.5 | 5.3 | 7.0 | 10.5 | 12.3 | 14.0 | 17.5 | 21.0 |
| BTU/h | 12000 | 18100 | 23900 | 35900 | 41800 | 47800 | 59800 | 71700 | |
| COP | W/W | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 |
| Input Power | kW | 0.76 | 1.16 | 1.53 | 2.29 | 2.67 | 3.06 | 3.82 | 4.59 |
| Input Current | A | 3.5 | 5.3 | 6.9 | 10.4 | 12.2 | 13.9 | 7.1 | 8.5 |
| Cooling condition: air DB 35℃/–, water inlet: 12℃, water outlet: 7℃ | |||||||||
| Rated Cooling Capacity | KW | 2.5 | 3.5 | 5 | 6.3 | 7.5 | 7.5 | 8.75 | 10 |
| BTU/H | 8530 | 11942 | 17060 | 21500 | 25600 | 25600 | 29855 | 34200 | |
| Rated Input Power | KW | 0.88 | 1.23 | 1.75 | 2.21 | 2.63 | 2.63 | 3.07 | 3.51 |
| Rated Input Curren | A | 4.0 | 5.6 | 8.0 | 10.0 | 12.0 | 12.0 | 4.7 | 5.3 |
| Rated Temp.Of Water Output | ℃ | 55.0 | |||||||
| Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 380/3/50 | 380/3/50 |
| Noise | dB(A) | 48 | 48 | 48 | 52 | 54 | 54 | 54 | 55 |
| Compressor | Rotary | Rotary | Rotary | Scroll | Scroll | Scroll | Scroll | Scroll | |
| Fan Direction | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | |
| Refrigerant Type | R32/R410A | ||||||||
| Water Flow Volume | m3/h | 1 | 1.5 | 2 | 2 | 2.5 | 2.5 | 3 | 3.5 |
| Water Out let/Water In let | inch | 3/4″ | 3/4″ | 3/4″ | 1″ | 1″ | 1″ | 1″ | 1″ |
