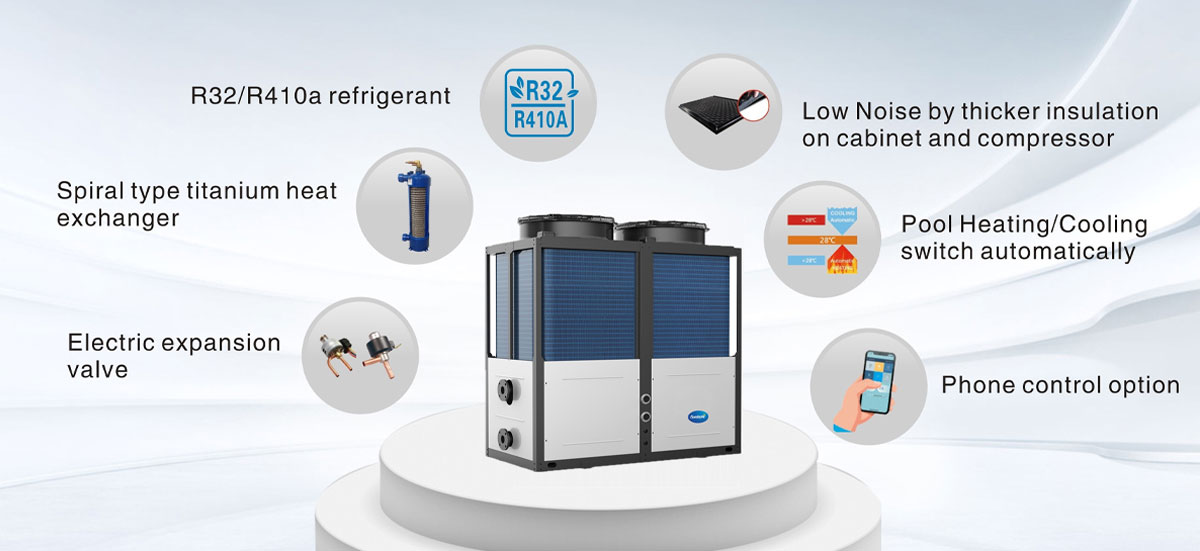

The heating capacity of FANTASTIC swimming pool heat pump is up to 500 Kw or larger, suitable for different pool size demands, no matter for household or commercial projects.

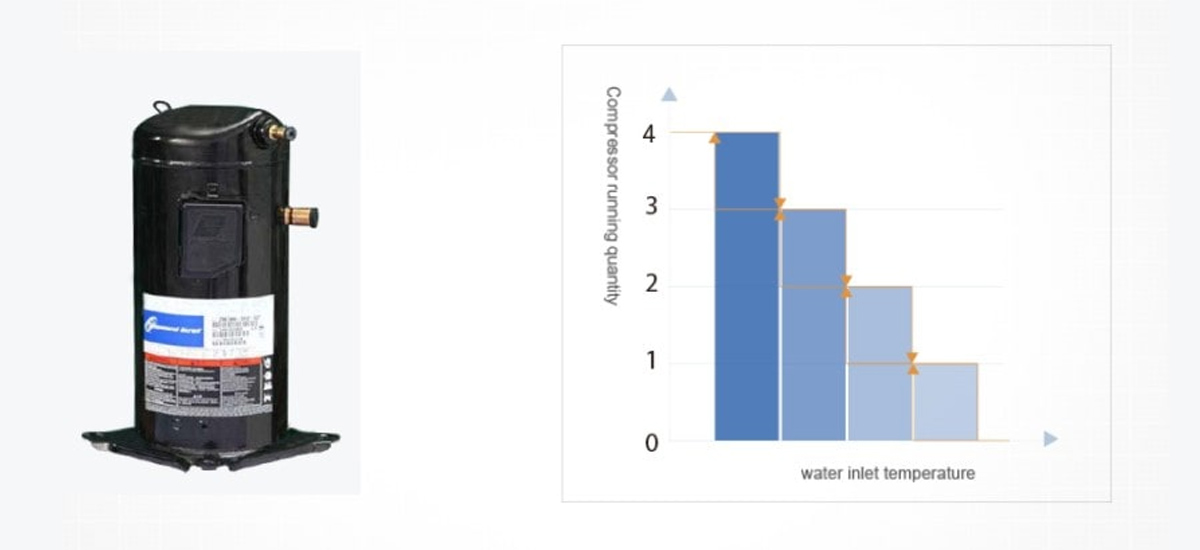

Fantastic swimming pool heat pump has precise energy stage settings that ensure the working unit achieves the desired energy-saving efficiency. The heat pump will change the compressor’s quantity according to the real heat required by the water inlet temperature. When the pool requires a higher heating load, it will use the full compressor quantity; when the water temperature is close to the target set temperature, it requires a lower heating load, so it will turn off some compressors and just use the compressor quantity according to the real heat load.

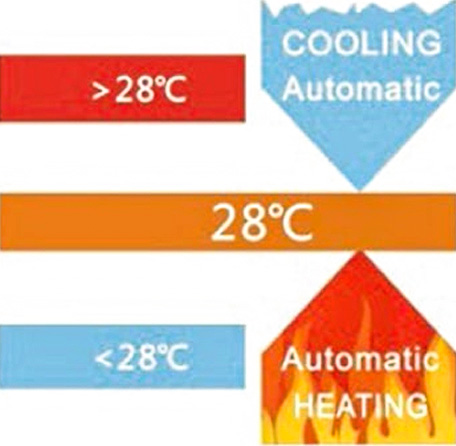

Fantastic swimming pool heat pump has an auto mode to maintain the pool water temperature. For example, if the pool target water temperature is set to 28℃ when the actual pool water temperature is lower than 28℃, the heat pump will start heating automatically; when the actual pool water temperature is higher than 28℃, it will start cooling automatically.
With COP of 5.7 at a working condition of 24℃ / 19℃ (DB / WB), Fantastic swimming pool heat pump has high efficiency for both pool cooling and heating.
Fantastic commercial heat pump can be paralleled and controlled by up to 16 units at the same time by one centralized controller. This makes temperature adjustment and failure review much easier and more practical. By incorporating the master-slave control into the design, the units in the whole system can work together with higher efficiency without being interfered with by any failure of the slave units during operation.

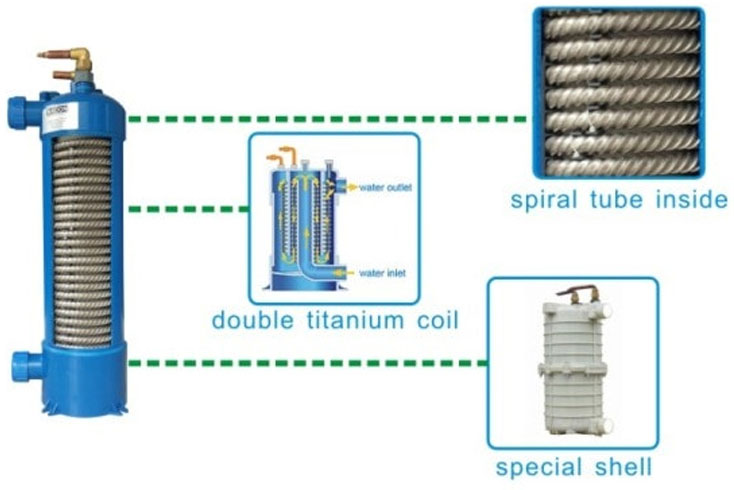

Fantastic patented titanium heat exchanger with spiral tubes inside, the titanium coil with higher heat efficiency and anti-corrosion, which makes the unit longer working life. Besides, Fantastic has patented shell-certified ETL for North America.
Fantastic pool heat pump has a Wi-Fi Remote control, which means you can control and know the working situation of your pool heat pump on your Smartphone at any time and anywhere, even if you are away from home.
| Model | FPHC060T3 | FPHC080T3 | FPHC100T3 | FPHC120T3 | FPHC150T3 | FPHC200T3 | FPHC250T3 | FPHC300T3 | FPHC400T3 | FPHC500T3 | |||
| Heating Condition | Ambient: 27℃, Water: 26℃ | ||||||||||||
| Heating Capacity | kW | 30.0 | 40.0 | 50.0 | 60.0 | 75.0 | 100.0 | 125.0 | 150.0 | 200.0 | 250.0 | ||
| BTU/h | 68300 | 136500 | 170600 | 204800 | 255900 | 341200 | 426500 | 511800 | 682400 | 853000 | |||
| COP | W/W | 5.87 | 5.87 | 5.87 | 5.87 | 5.87 | 5.87 | 5.87 | 5.87 | 5.87 | 5.87 | ||
| Input Power | kW | 3.41 | 6.81 | 8.52 | 10.22 | 12.78 | 17.04 | 21.29 | 25.55 | 34.07 | 42.59 | ||
| Input Current | A | 6.5 | 12.9 | 16.2 | 19.4 | 24.3 | 32.4 | 40.4 | 48.5 | 64.7 | 80.9 | ||
| Heating Condition | Ambient: 24℃, Water: 26℃ | ||||||||||||
| Heating Capacity | kW | 25.8 | 34.4 | 43.0 | 51.6 | 64.5 | 86.0 | 107.5 | 129.0 | 172.0 | 215.0 | ||
| BTU/h | 88100 | 117400 | 146800 | 176100 | 220100 | 293500 | 366800 | 440200 | 586900 | 733600 | |||
| COP | W/W | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | ||
| Input Power | kW | 4.87 | 6.49 | 8.11 | 9.74 | 12.17 | 16.23 | 20.28 | 24.34 | 32.45 | 40.57 | ||
| Input Current | A | 9.2 | 12.3 | 15.4 | 18.5 | 23.1 | 30.8 | 38.5 | 46.2 | 61.6 | 77.0 | ||
| Heating Condition | Ambient: 15℃, Water: 26℃ | ||||||||||||
| Heating Capacity | kW | 22.8 | 30.4 | 38.0 | 45.6 | 57.0 | 76.0 | 95.0 | 114.0 | 152.0 | 190.0 | ||
| BTU/h | 77800 | 103800 | 129700 | 155600 | 194500 | 259400 | 324200 | 389000 | 518700 | 648300 | |||
| COP | W/W | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 | ||
| Input Power | kW | 4.85 | 6.47 | 8.09 | 9.70 | 12.13 | 16.17 | 20.21 | 24.26 | 32.34 | 40.43 | ||
| Input Current | A | 9.2 | 12.3 | 15.4 | 18.4 | 23.0 | 30.7 | 38.4 | 46.1 | 61.4 | 76.8 | ||
| Power Supply | V/PH/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | ||
| Water Out let/Water In let | inch | 1–1/2″ | 2″ | 2″ | 2″ | 2″ | 2″ | 2–1/2″ | 3″ | 4″ | 4″ | ||
| Water Flow Volume (range) | m3/h | 7.39~14.79 | 9.86~19.72 | 12.32~24.65 | 14.79~29.58 | 18.49~36.97 | 24.65~49.30 | 30.81~61.62 | 36.97~73.95 | 49.30~98.60 | 61.62~123.24 | ||
| Fan Direction | Vertical | ||||||||||||
| Refrigerant Type | R32/R410a | ||||||||||||
