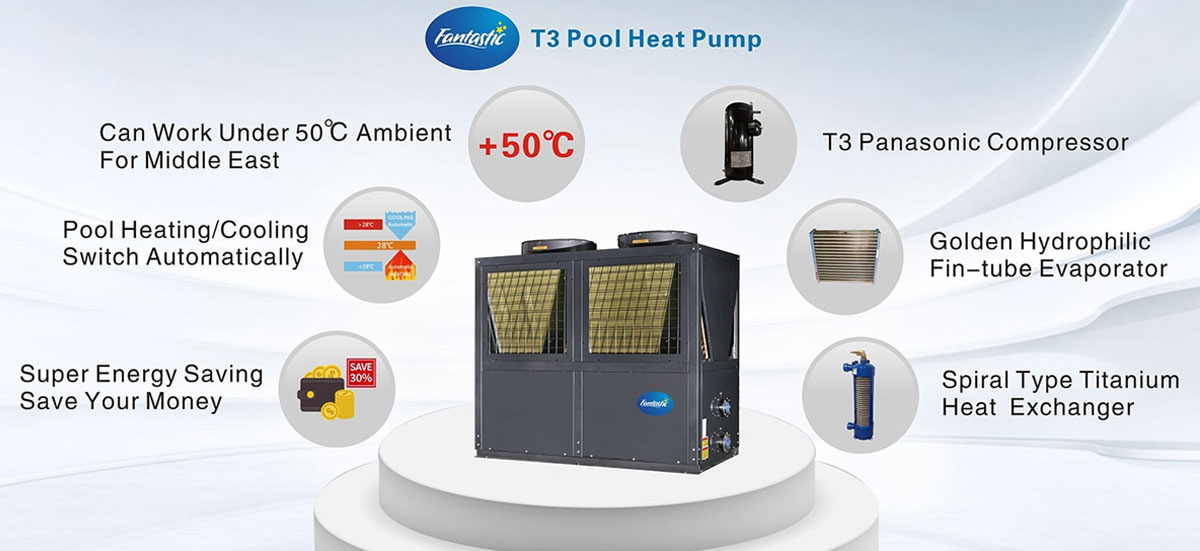

Design for 50℃+ ambient place – T3 swimming pool heat pump combines T3 compressor and T3 technology, T3 FANTASTIC swimming pool heat pump can work under 50 ℃ + ambient for East Middle Place.
Affordability – As the high COP of Fantastic T3 pool heat pump, it can heat your pool for about 25% of the cost of heating with gas, High COP means more energy saving.
Ex. $ 1 input – $ 5.8 of energy output at COP of 5.8.
Long life with good quality components – FANTASTIC T3 heat pump heats your pool whatever rain or shine, and built-in spiral titanium heat exchanger, the casing can be galvanized metal or stainless steel for choice, golden fin air heat exchanger, EEV, soft start, etc. in your pool heater.
Auto pool heating/cooling mode switch – FANTASTIC T3 pool heater has an auto model to keep the pool water temperature. For example, if set pool target water temperature is 28℃， when the pool’s actual water temperature is below 28℃, the heat pump will start heating automatically, when the pool’s actual water temperature is above 28℃, it will start cooling automatically.
Smart central control – Multiple T3 heat pumps can work together and be controlled in one main controller, which will make it easier for the user to check and control the heat pump work. What’s more, the FANTASTIC intelligent central control can select the number of heat pumps in the working pool according to the actual situation, saving your electricity bill all the time.

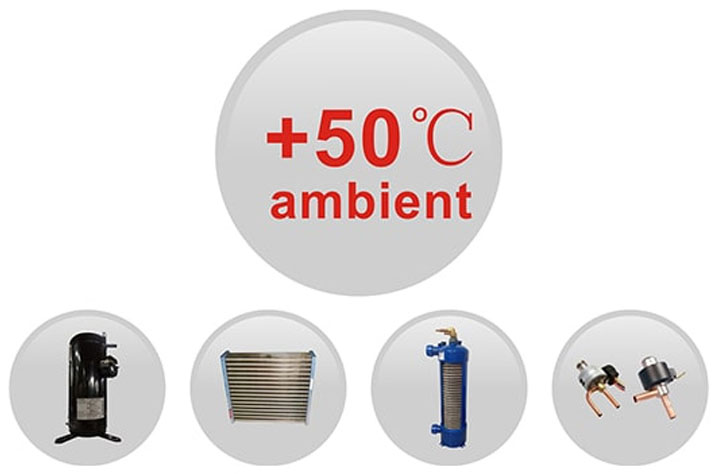

T3 swimming pool heat pump combines T3 compressor and T3 technology, T3 FANTASTIC swimming pool heat pump can work under 50 ℃ + for East Middle Place.
The heating capacity of Fantastic swimming pool heat pump is up to 500 Kw or bigger. Suitable for different sizes of pool demand, no matter for household or commercial projects.
FANTASTIC swimming pool heat pump has an auto model to keep the pool water temperature. For example, if set pool target water temperature is 28℃, when the pool’s actual water temperature is below 28℃, the heat pump will start heating automatically, when the pool’s actual water temperature is above 28℃, it will start cooling automatically.
With COP of 5.7 at the working condition of 24o C / 19o C (DB / WB), Fantastic swimming pool heat pump has high e¬iciency for either pool cooling or heating.
Fantastic Commercial heat pump can control up to 16 units of swimming pool heat pump at the same time by one controller comes equipped with centralized control that makes temperature adjustment and failure review much easier and more practical. By incorporating the master-slave control into the design, the whole units can work together with higher efficiency without being interfered with by any failure of the slave unit during operation.
Fantastic pool heat pump has a Wi-Fi Remote control, which means you can control and know the working situation of your pool heat pump on your Smartphone at any time and anywhere, even if you are away from home.
Wider working temperature range, faster and more accurate refrigerant flow control than capillary and mechanical expansion valve. Best choice to achieve higher efficiency and energy-saving.

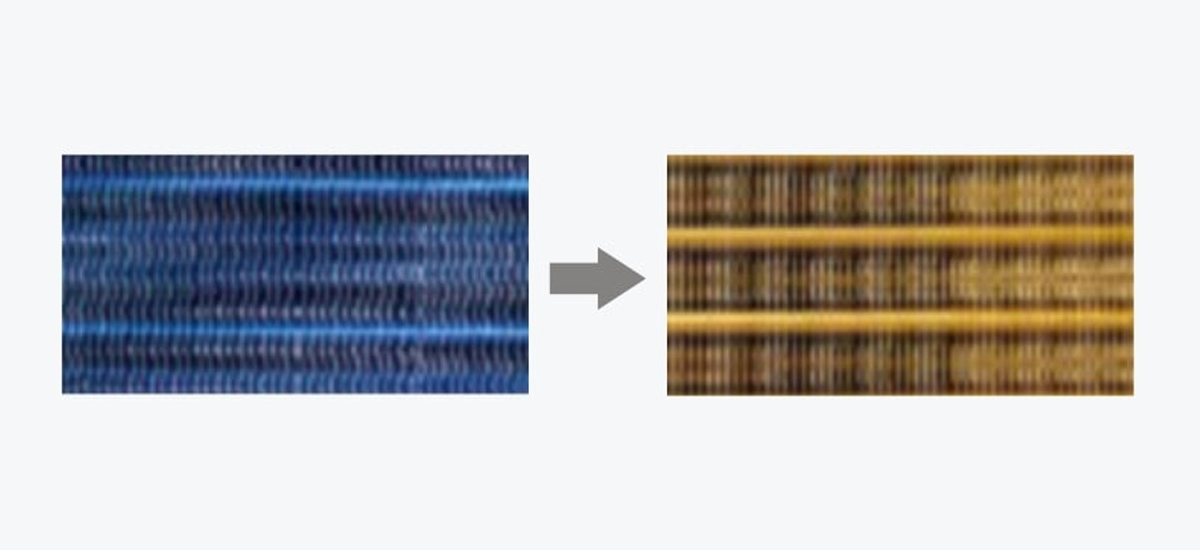

Highly customized, at least three kinds of fin heat exchangers can be opted for, including the golden fin heat exchanger, blue fin heat exchanger and hydrophilic fin heat exchanger.
| Model | FT3PHC030T3 | FT3PHC040T3 | FT3PHC060T3 | FT3PHC080T3 | FT3PHC100T3 | FT3PHC120T3 | FT3PHC180T3 | FT3PHC200T3 | ||||
| Heating Condition | Ambient: 27℃, Water: 26℃ | |||||||||||
| Heating Capacity | kW | 15.0 | 20.0 | 30.0 | 40.0 | 50.0 | 60.0 | 90.0 | 100.0 | |||
| BTU/h | 51200 | 68300 | 68300 | 136500 | 170600 | 204800 | 307080 | 341200 | ||||
| COP | W/W | 5.9 | 5.9 | 5.9 | 5.9 | 5.9 | 5.9 | 5.9 | 5.9 | |||
| Input Power | kW | 2.56 | 3.41 | 3.41 | 6.81 | 8.52 | 10.22 | 15.33 | 17.04 | |||
| Input Current | A | 4.9 | 6.5 | 6.5 | 12.9 | 16.2 | 19.4 | 29.2 | 32.4 | |||
| Heating Conditoin | Ambient: 24℃, Water: 26℃ | |||||||||||
| Heating Capacity | kW | 13.0 | 17.0 | 25.0 | 35.0 | 45.0 | 55.0 | 75.0 | 85.0 | |||
| BTU/h | 44400 | 58100 | 85300 | 119500 | 153600 | 187700 | 255900 | 290100 | ||||
| COP | W/W | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | |||
| Input Power | kW | 2.36 | 3.09 | 4.55 | 6.36 | 8.18 | 10.00 | 13.64 | 15.45 | |||
| Input Current | A | 4.5 | 5.9 | 8.6 | 12.1 | 15.5 | 19.0 | 25.9 | 29.4 | |||
| Heating Conditoin | Ambient: 15℃, Water: 26℃ | |||||||||||
| Heating Capacity | kW | 10.5 | 14.0 | 21.0 | 28.0 | 35.0 | 42.0 | 63.0 | 70.0 | |||
| BTU/h | 35900 | 47800 | 71700 | 95600 | 119500 | 143400 | 215000 | 238900 | ||||
| COP | W/W | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | |||
| Input Power | kW | 2.28 | 3.04 | 4.57 | 6.09 | 7.61 | 9.13 | 13.70 | 15.22 | |||
| Input Current | A | 4.3 | 5.8 | 8.7 | 11.6 | 14.5 | 17.3 | 26.0 | 28.9 | |||
| Cooling Conditoin | Ambient: 43℃, Water: 30℃ | |||||||||||
| Cooling Capacity | kW | 9.0 | 12.0 | 18.0 | 24.0 | 30.0 | 36.0 | 54.0 | 60.0 | |||
| BTU/h | 30800 | 41000 | 61500 | 81900 | 102400 | 122900 | 184300 | 204800 | ||||
| COP | W/W | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | |||
| Input Power | kW | 3.00 | 4.00 | 6.00 | 8.00 | 10.00 | 12.00 | 18.00 | 20.00 | |||
| Input Current | A | 5.7 | 7.6 | 11.4 | 15.2 | 19.0 | 22.8 | 34.2 | 38.0 | |||
| Power Supply | V/PH/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | |||
| Water Out let/Water In let | inch | 1–1/2″ | 1–1/2″ | 1–1/2″ | 2″ | 2″ | 2″ | 3″ | 3″ | |||
| Water Flow Volume | m3/h | 3.73 | 4.87 | 7.17 | 10.03 | 12.90 | 15.76 | 21.50 | 24.36 | |||
| Refrigerant Type | R410a | |||||||||||
