1. Titanium heat exchanger.
2. Compressor.
3. Fan assembly.
4. Electric control panel.
5. Ozone sterilizer and water pump inside, easy to install.
6. Option with contoured panels tub together, provides a “Super Insulated”, you can use
directly.

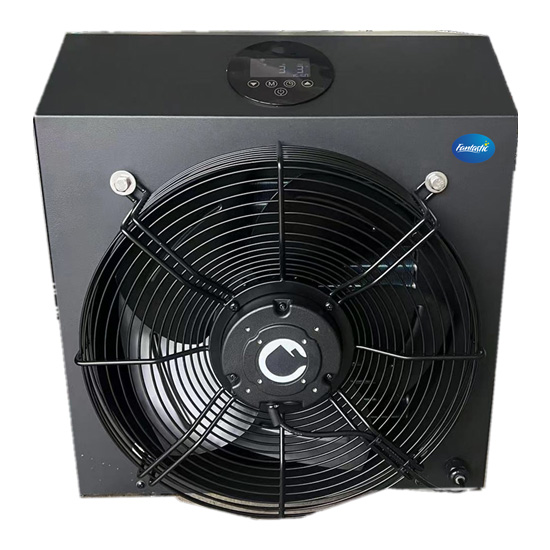

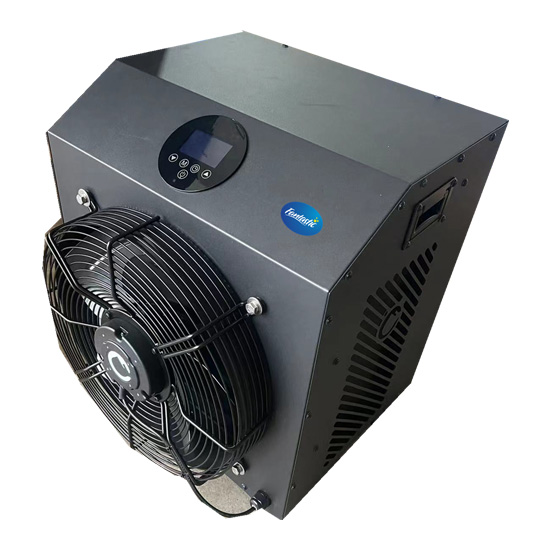

Athletes and fitness trainers highly recommend this mini pool chiller for ice baths. It can help you recover well after exercise and help you relieve muscle stress. Other than that, this is a must-have if you keep fish or need cold water.

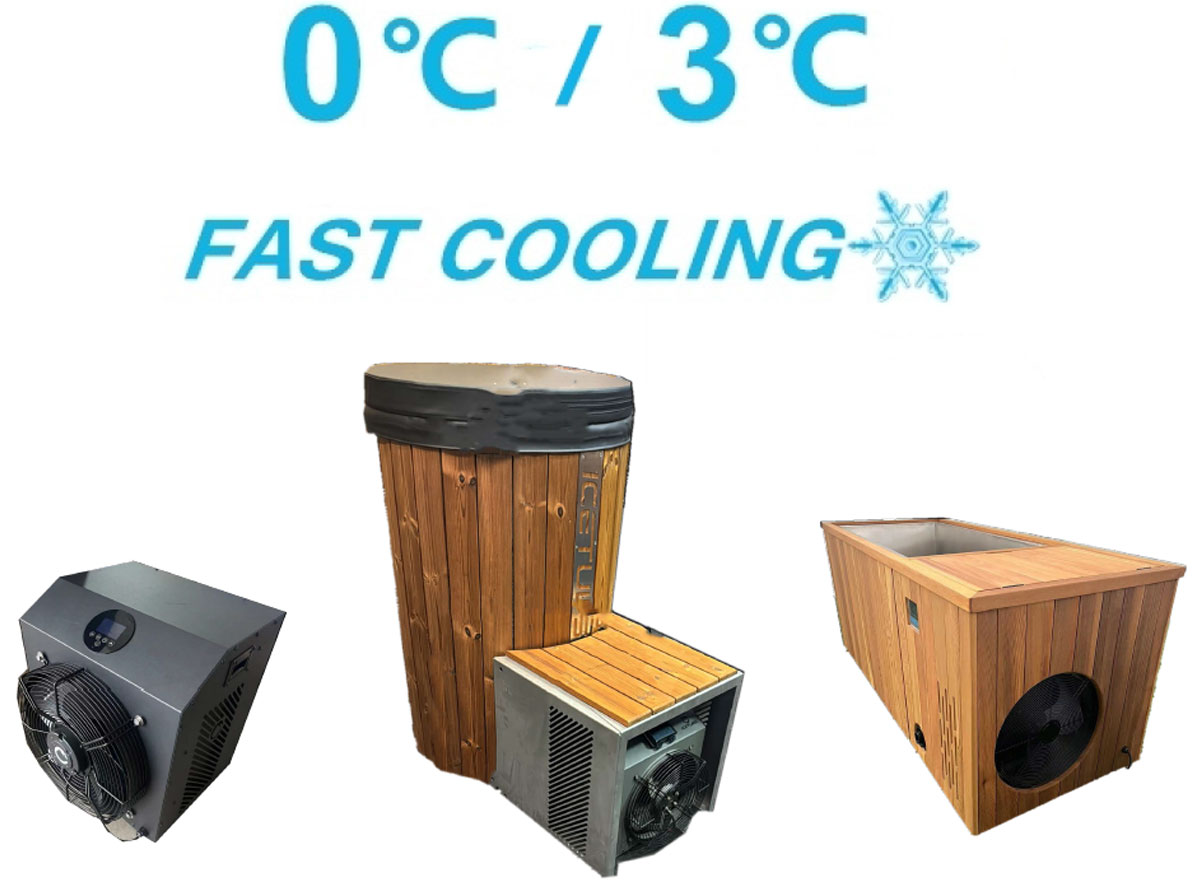

Fast cooling, lowest temperature to 0℃ or 3℃ option, you can see the ice is made in the tub/bath.

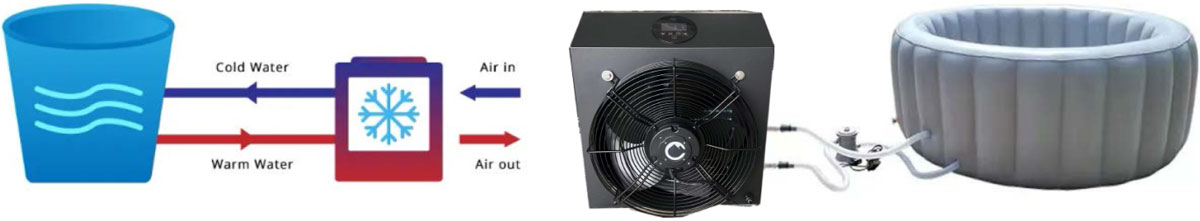

Air source ice bath water chiller requires no installation of new pipework and can be placed virtually anywhere in your garden or also be installed in the steps of the ice bath tank because all water pumps and ozone generators have already been built-in.

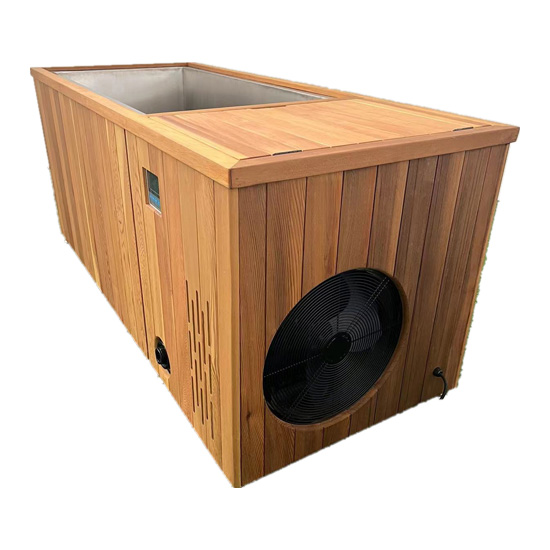

You can also choose our full ice bath with bathtub, which is a combination of our ice bath chiller and bathtub. Its stainless steel bathtub, streamlined design and high-grade wood texture make you feel extra comfortable. The lowest temperature can be 0 ° C, and you can see the water in the bathtub forming ice cubes.

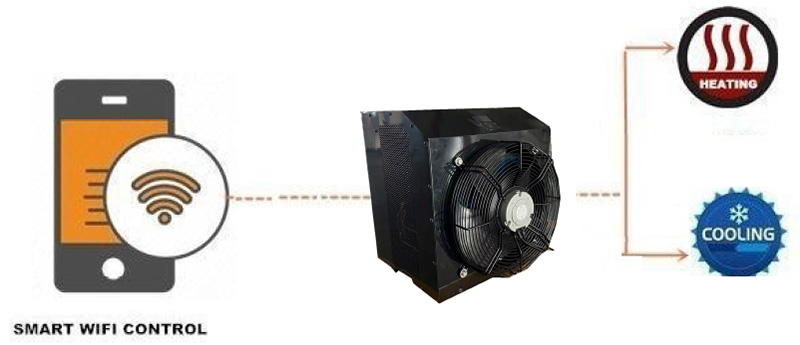

Equipped wifi control function which is more convenient for you to control and adjust your heat pump by phone anytime & anywhere.
The EER of the ice bath chiller is up to 2.9, COP of the hot tub heater is up to 6.3, enabling it to consume less electricity and obtain more cooling capacity.
Equipped with a power cable and plug, easy to install and use.
| Model No. | FPMCH3S |
| Power | 220-240V/1PH/50HZ or 110V/1PH/60HZ |
| Cooling Performance Condition | Air Temperature: 27°C, Water Temperature: 5°C |
| Cooling Capacity | 3.17 kW |
| Power consumption | 1.07 kW |
| EER | 2.96 W/W |
| Heating Performance Condition | Air Temperature: 27 °C, Water Temperature: 28°C |
| Heating Capacity | 5.02 kW |
| Power Consumption | 0.92 kW |
| Lowest Water Temperature | 3℃ |
| Compressor | Rotary |
| Refrigerant | R32 |
| Max. Current | 7.5 A |
| CO2 Equivalent | 0.24 t |
| System Max. Pressure | 4.2 mPa |
| Water-side Heat Exchanger | Spiral Round Titanium Heat Exchanger |
| Ozonator’s Ozone Output | 200-300 ppm |
| Water Pump | 55 L/min |
| Water Connection | 32 mm |
| Advise Water Flow | 2 m3/h |
| GWP Value | 675 |
| Water Pressure Drop | 14 kPa |
| Noise Level (1m) | 52 dB (A) |
| Water Resistance | IPX4 |
| Electricity Shockproof | I |
| Operating Air Temp. | -7 ~ 43°C |
| Product Dimension | 510*505*565 mm |
| Package Dimension | 540*540*700 mm |
| Net Weight | 46.54 kg |
| Gross Weight | 55.4 kg |
| Model No. | FPFCH3S |
| Power | 220V-240V/1PH/50HZ |
| Cooling Performance Condition | Air Temperature: 27°C, Water Temperature: 5°C |
| Cooling Capacity | 2.5 kW |
| Power Consumption | 0.85 kW |
| EER | 2.96 W/W |
| Heating Performance Condition | Air Temperature: 27 °C, Water Temperature: 28°C |
| Heating Capacity | 3.5 kW |
| Power Consumption | 0.7 kW |
| Lowest Water Temperature | 0℃ or 3℃ |
| Compressor | Rotary |
| Refrigerant | R410a or R290 |
| Max. Current | 6 A |
| Rate. Current | 4 A |
| Water-side Heat Exchanger | Spiral Round Titanium Heat Exchanger |
| Water Pump | Yes inside |
| Filter | Yes inside |
| Ozonator | Yes inside |
| Noise Level(1m) | 55 dB(A) |
| Operating Air Temp. | -7 ~ 43°C |
| Product Dimension | 2010*890*1175 mm |
| Package Dimension | 2080*970*1220 mm |
