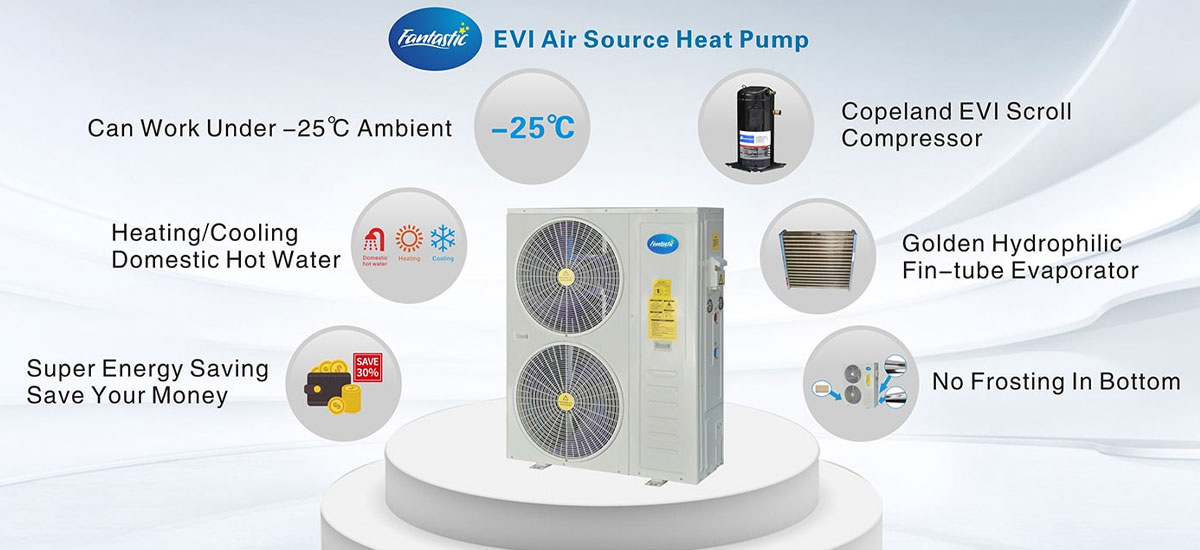

Applications:

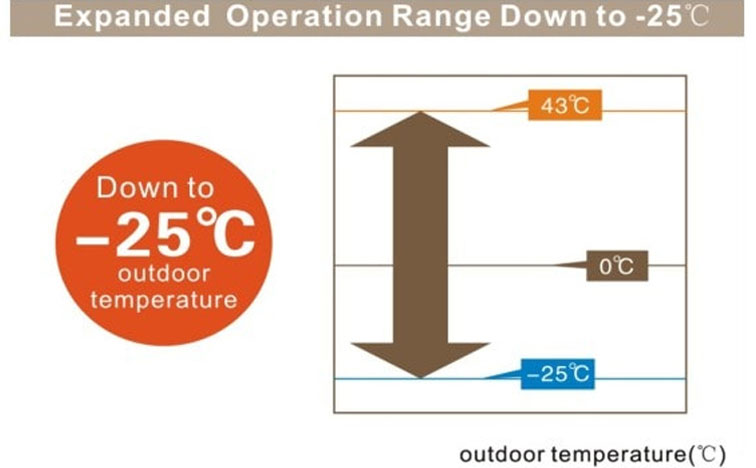

Stable operation under -25 ℃ ambient – Fantastic EVI heat pump with smart EVI control way and EVI structure could work under ambient temperature range: -25 degree~43 degrees.
18 years experience – the Fantastic company has manufactured over 48,000 EV heat pumps worldwide.
Affordability – As the high COP of Fantastic EVI air source heat pump, it can heat your house for about 25% of the cost of heating with gas, high COP means more energy saving.
Ex. $ 1 input – $ 4.55 of energy output at COP of 4.55.
Long life with famous brand high-quality components – Fantastic air source EVI heat pump equipped with Panasonic compressor, SHIBAURA fan motor, and WILO water pump, SWEP plate heat exchanger, and with an element under button plate, and so on. All the heat pumps with famous international brand components.
The heating capacity of Fantastic EVI heat pump is up to 175 Kw or larger, suitable for different pool size demands, no matter for household or commercial projects.
Wide working ambient temperature range: -25℃~43℃; Intelligent control, any weather available, automatic load adjusts under different climates and environments to satisfy the demands of summer cooling, winter heating and hot water throughout the year.
The intelligent CAREL controller with RS485 is adopted to realize the linkage control between the heat pump unit and the terminal application end. With the Cascade function, multiple heat pumps can be controlled at once for greater operating efficiency. The WIFI APP enables users to operate their units through a smartphone wherever and whenever they are.
Fantastic EVI heat pump increases the heating capacity and extends the operating life by TEV, and increases COP and limits the discharge temperature under a safe level by EEV, and lowers the defrosting time to make the heat pump put more time on heating and more energy-saving.

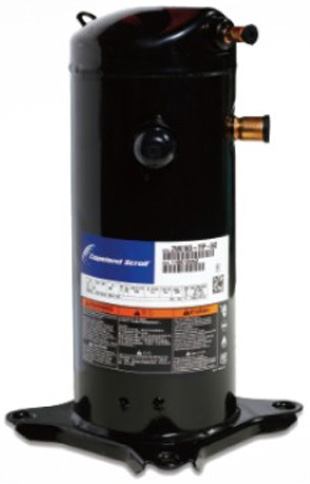

By Fantastic particular EVI control and EVI structure and Copeland / Panasonic R410a EVI compressor, the heat pump is more reliable under low ambient temperatures and increases 25% heating capacity and 10% higher heating COP for superior seasonal efficiency.
Fantastic spiral type highly efficient heat exchanger is with increased heat exchanger area to improve the heat transfer ability and evenly distribute over the surface of the copper, reducing water film, and improving efficiency.
With a 2-layer separate design, the top layer is for the fan and evaporator, the bottom layer is for the compressor and heat exchanger, and block up slopes on 2 sides of the button + anti-freezing element on the top layer + the use of special liquid distribution technology. When unit is working in heating mode, the temperature of the refrigerant in the air exchanger’s bottom copper tube will not decrease to ensure no frosting on it and smooth drainage.

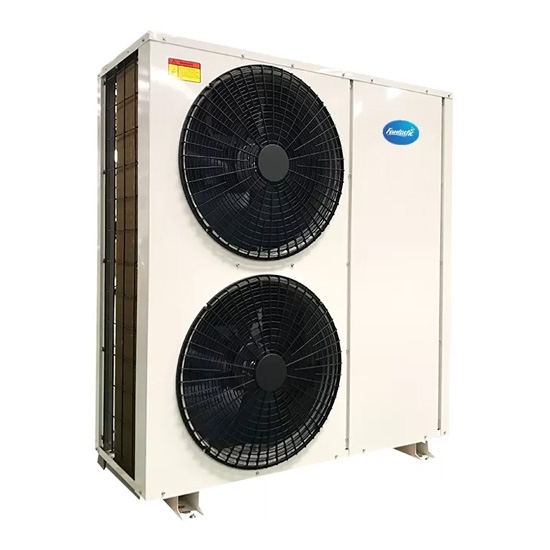

| EVI Air To Water Inverter Heat Pump (Residential Models) | |||||
| Mode | FEHCD030S | FEHCD050S | FEHCD060S | FEHCD080S | |
| Heating Condition: air DB 20℃/WB 15℃, water from 15℃ to 55℃ | |||||
| Heating capacity① | KW | 10.5 | 17.5 | 21 | 28 |
| Input power（Heating）① | KW | 2.31 | 3.85 | 4.62 | 6.15 |
| Input current（Heating）① | A | 10.5 | 17.5 | 21.0 | 28.0 |
| COP① | W/W | 4.55 | 4.55 | 4.55 | 4.55 |
| Heating condition: air DB 7℃/WB 6℃, water inlet: 40℃, water outlet: 45℃ | |||||
| Heating capacity②A | KW | 8.3 | 13.8 | 16.5 | 22.0 |
| Input power（Heating）② | KW | 2.53 | 4.21 | 5.06 | 6.75 |
| Input current（Heating）② | A | 11.5 | 19.1 | 23.0 | 30.7 |
| COP② | W/W | 3.28 | 3.28 | 3.26 | 3.26 |
| Heating condition: air DB -12℃/WB -14℃, water outlet: 41℃ | |||||
| Heating capacity③ | KW | 6.0 | 9.3 | 11.5 | 15.0 |
| Input power（Heating）③ | KW | 2.60 | 4.04 | 5.10 | 6.52 |
| Input current（Heating）③ | A | 11.8 | 18.4 | 23.2 | 29.6 |
| COP③ | W/W | 2.30 | 2.30 | 2.25 | 2.30 |
| Cooling condition: air DB 35℃/–, water inlet: 12℃, water outlet: 7℃ | |||||
| Cooling capacity | KW | 7.5 | 12.3 | 14.7 | 19.6 |
| Input power（Cooling） | KW | 2.42 | 3.96 | 4.74 | 6.32 |
| Input current（Cooling） | A | 11.0 | 18.0 | 21.6 | 28.7 |
| Power supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 |
| Max running current | A | 14.5 | 27.7 | 28.2 | 46.0 |
| Refrigerant | R32/R410a | ||||
| Working ambient temperature | -30°C~43°C | ||||

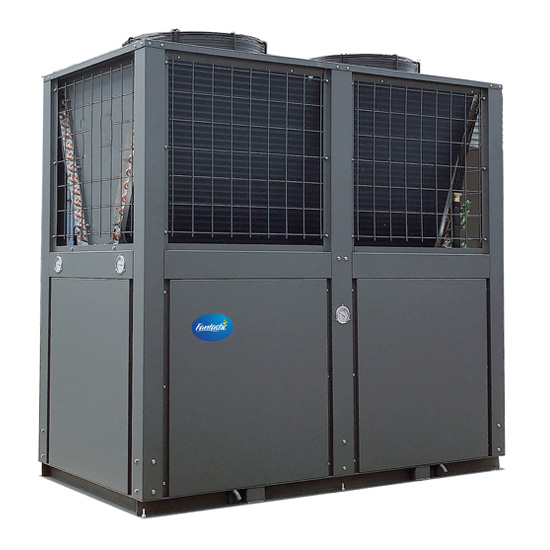

| EVI Air To Water Inverter Heat Pump (Commercial Models ) | |||||||||
| Model | FEHCD080T3 | FEHCD100T3 | FEHCD120T3 | FEHCD150T3 | FEHCD200T3 | FEHCD250T3 | FEHCD300T3 | FEHCD500T3 | |
| Heating Condition: air DB 20℃/WB 15℃, water from 15℃ to 55℃ | |||||||||
| Heating capacity①A20W15/55 | KW | 28 | 35 | 42.0 | 52.5 | 75.0 | 87.5 | 105 | 175 |
| Input power（Heating）① | KW | 6.15 | 7.69 | 9.23 | 11.54 | 16.48 | 19.23 | 23.08 | 38.46 |
| Input current（Heating）① | A | 9.4 | 11.7 | 14.0 | 17.5 | 25.0 | 29.2 | 35.1 | 58.4 |
| COP① | 4.55 | 4.55 | 4.55 | 4.55 | 4.55 | 4.55 | 4.55 | 4.55 | |
| Heating condition: air DB 7℃/WB 6℃, water inlet:40℃, water outlet: 45℃ | |||||||||
| Heating capacity②A7W40/45 | KW | 22.0 | 27.5 | 33.0 | 41.2 | 54.8 | 68.0 | 83.0 | 136.0 |
| Input power（Heating）② | KW | 6.75 | 8.44 | 10.28 | 12.87 | 17.12 | 21.18 | 25.86 | 42.36 |
| Input current（Heating）② | A | 12.8 | 16.0 | 19.5 | 24.4 | 32.5 | 40.2 | 49.1 | 80.5 |
| COP② | 3.26 | 3.26 | 3.21 | 3.20 | 3.20 | 3.21 | 3.21 | 3.21 | |
| Heating condition: air DB -12℃/WB -14℃, water outlet: 41℃ | |||||||||
| Heating capacity③A-12W41 | KW | 15.0 | 21.5 | 22.4 | 29.5 | 42.0 | 52.0 | 55.0 | 104.0 |
| Input power（Heating）③ | KW | 6.52 | 9.27 | 10.00 | 12.83 | 17.01 | 20.35 | 21.90 | 40.69 |
| Input current（Heating）③ | A | 12.4 | 17.6 | 19.0 | 24.4 | 32.3 | 38.6 | 41.6 | 77.3 |
| COP③ | 2.30 | 2.32 | 2.24 | 2.30 | 2.47 | 2.56 | 2.51 | 2.56 | |
| Cooling condition: air DB 35℃/–, water inlet: 12℃, water outlet: 7℃ | |||||||||
| Cooling capacity | KW | 20.0 | 24.5 | 29.4 | 37.0 | 46.0 | 65.0 | 69.0 | 130.0 |
| Input power（Cooling） | KW | 6.89 | 7.90 | 9.48 | 11.50 | 15.08 | 20.96 | 23.00 | 42.00 |
| Input current（Cooling） | A | 13.1 | 15.0 | 18.0 | 21.8 | 28.6 | 39.8 | 43.6 | 79.8 |
| Refrigerant | R32/R410a | ||||||||
| Power | V/PH/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Max running current | A | 20.0 | 25.7 | 31.3 | 35.2 | 46.8 | 55.0 | 70.7 | 110.0 |
| Compressor | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | |
| Working ambient temperature | -30℃～43℃ | ||||||||
