Applications:
Targeting the European and North American markets, Fantastic has adopted R32 green gas and inverter technology, rated as an A+++ energy label. With the highest energy rating in the European market, A+++, the unit is currently the most energy efficient and can significantly reduce customers’ energy bills. The maximum COP is 5.65 and the SCOP is 4 88. of performance (COP). The high-efficiency DC variable frequency heat pump saves more than 30% of energy than other air-source heat pumps.
The intelligent CAREL controller with RS485 is adopted to realize the linkage control between the heat pump unit and the terminal application end. With the Cascade function, multiple heat pumps can be controlled at once for greater operating efficiency. The WIFI APP enables users to operate their units through a smartphone wherever and whenever they are.

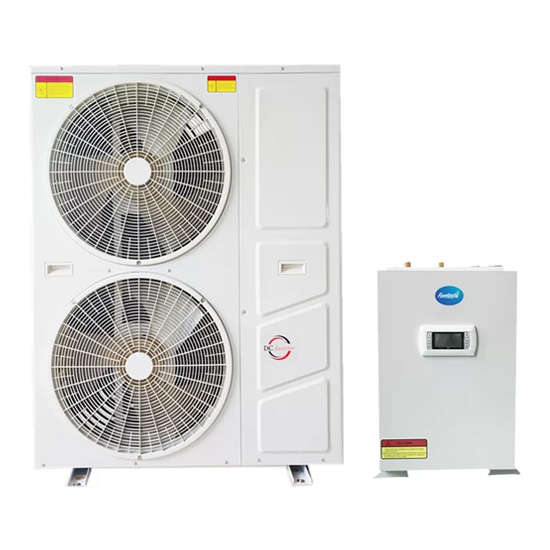

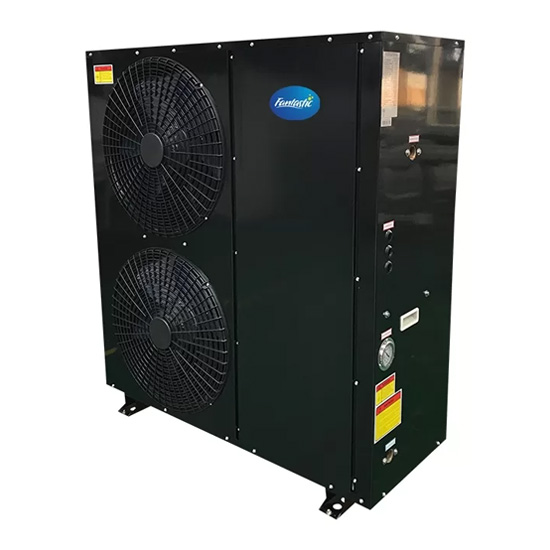

Fantastic DC inverter heat pump applies real full-inverter technology, not only the DC inverter compressor but also the inverter water pump and inverter fan motor. What’s more, the expansion tank and water flow switch are also built inside the heat pump.
Once the heat pump is on, Fantastic Inverter unit can quickly pick and choose the best compressor and fan motor operating frequencies and the heat pump EEV opens automatically according to the heating or cooling demand by smart inverter control technology for the first-time heating, inverter fast heating can save 50% heating time than the traditional heat pump.
Fantastic DC Inverter swimming pool heat pump adopts a step-less inverter compressor, step-less inverter control system and brushless fan motor. By smart conversion of compressor speed, fan motor speed and system pressure, it can not only provide an amazing energy-saving effect but also silence as low as a fridge, 12dB (A) lower than a traditional On / Off heat pump.

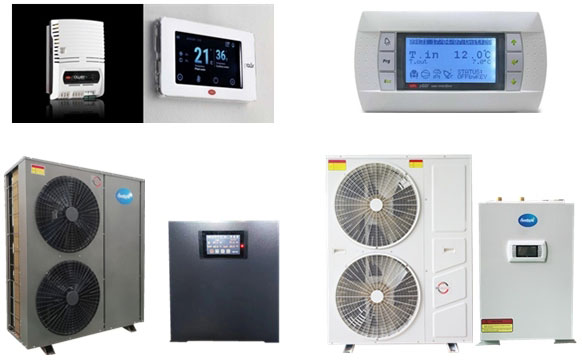

Using the famous high-quality Carel controller for option, it’s highly efficient and convenient for the customer and also with curve control (would change the water temperature as the ambient temperature automatically) and also with timing sterilization function and API function, and so on.

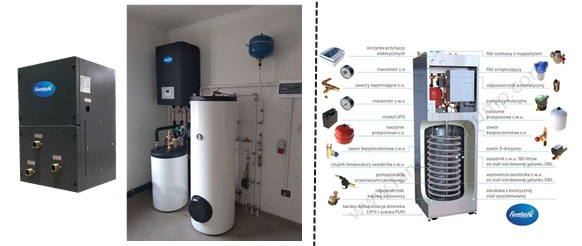

After the customer buys the heat pump, they also need complicated and high cost’s installation, Fantastic hydraulic module that could put all installation things – water pump, expansion valve, 3-way valve, wiring box, sensors, electric heater, and so on in one box, customer buys the heat pump and our hydraulic module together, then they just need to connect the water pipe would be ok.
| Inverter Air to Water heat pump(residential models) | ||||||
| Model | FIHC020 | FIHCD030 | FIHCD050 | FIHCD060 | FIHCD080 | |
| Heating condition: air DB 7℃/WB 6℃, water inlet: 40℃, water outlet: 45℃ | ||||||
| Heating capacity①A | KW | 5.4 | 10.5 | 14.0 | 16.5 | 24.0 |
| Input power（Heating）① | KW | 1.64 | 3.25 | 4.18 | 5.00 | 7.27 |
| Input current（Heating）① | A | 7.5 | 14.8 | 19.0 | 22.7 | 33.0 |
| COP① | W/W | 3.29 | 3.23 | 3.35 | 3.30 | 3.30 |
| Heating condition: air DB -12℃/WB -14℃, water outlet: 41℃ | ||||||
| Heating capacity② | KW | 3.8 | 6.5 | 9.5 | 11.5 | 18.0 |
| Input power（Heating）② | KW | 1.80 | 3.08 | 4.46 | 5.45 | 8.40 |
| Input current（Heating）② | A | 8.2 | 14.0 | 20.3 | 24.8 | 38.2 |
| COP② | W/W | 2.11 | 2.11 | 2.13 | 2.11 | 2.14 |
| Cooling condition: air DB 35℃/–, water inlet: 12℃, water outlet:7℃ | ||||||
| Cooling capacity | KW | 5.0 | 8.0 | 12.5 | 15.0 | 20.0 |
| Input power | KW | 1.99 | 3.00 | 4.98 | 5.98 | 7.90 |
| Input current | A | 9.1 | 13.6 | 22.6 | 27.2 | 35.9 |
| Power supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 |
| Max running current | A | 13.6 | 20.5 | 34.0 | 40.7 | 53.9 |
| Refrigerant | R32/R410a | |||||
| Inverter Air to Water heat pump (commercial models) | |||||||
| Model | FIHCD0303 | FIHCD0503 | FIHCD0603 | FIHCD0803 | FIHCD1003 | FIHCD1203 | |
| Heating conditon: air DB 7℃/WB 6℃, water inlet: 40℃, water outlet: 45℃ | |||||||
| Heating capacity①A | KW | 10.5 | 14.0 | 16.5 | 24.0 | 27.0 | 32.4 |
| Input power（Heating）① | KW | 3.20 | 4.24 | 5.00 | 7.27 | 8.18 | 9.84 |
| Input current（Heating）① | A | 5.9 | 7.9 | 9.3 | 13.5 | 15.2 | 18.2 |
| COP① | W/W | 3.28 | 3.30 | 3.30 | 3.30 | 3.30 | 3.29 |
| Heating conditon: air DB -12℃/WB -14℃, water outlet: 41℃ | |||||||
| Heating capacity② | KW | 6.5 | 9.5 | 11.5 | 18.0 | 20.0 | 24.0 |
| Input power（Heating）② | KW | 3.08 | 4.46 | 5.45 | 8.40 | 9.40 | 11.40 |
| Input current（Heating）② | A | 5.7 | 8.3 | 10.1 | 15.6 | 17.4 | 21.1 |
| COP② | W/W | 2.11 | 2.13 | 2.11 | 2.14 | 2.13 | 2.11 |
| Cooling conditon: air DB 35℃/–, water inlet: 12℃, water outlet: 7℃ | |||||||
| Cooling capacity | KW | 8.0 | 12.5 | 15.0 | 20.0 | 25.0 | 30.0 |
| Input power | KW | 3.00 | 4.70 | 5.80 | 7.90 | 9.96 | 11.90 |
| Input current | A | 5.6 | 8.7 | 10.7 | 14.6 | 18.5 | 22.0 |
| Power supply | V/PH/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Max running current | A | 7.2 | 11.3 | 14.0 | 19.0 | 24.0 | 28.7 |
| Noise | dB(A) | 53 | 54 | 54 | 55 | 56 | 56 |
| Water inlet/outlet | inch | 1″ | 1″ | 1″ | 1-1/4″ | 1-1/4″ | 1-1/4″ |
| Water flow volume | m³/h | 1.38 | 2.15 | 2.58 | 3.44 | 4.30 | 5.16 |
| Refrigerant | R32/R410A | ||||||
