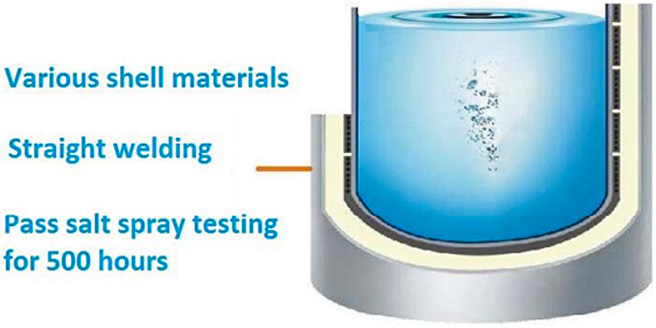

Fantastic Water Tank housing could be use stainless steel/spray galvanized/spray sheet metal, etc and with direct welding, which is more rust resistant than other traditional companies’ ordinary powder coated shells and can pass salt spray testing for 500 hours.

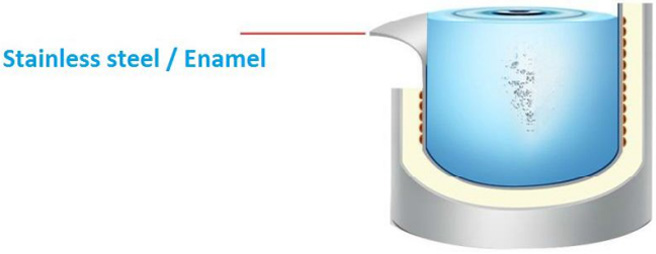

Fantastic water tank with 316S.S / 304S.S / 22055S.S- Duplex stainless steel / Enamel Inner, high anti-corrosion and good pressure bearing.

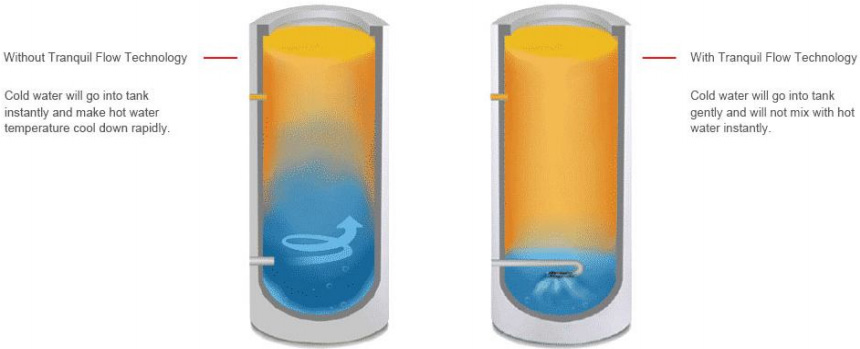

The application of tranquil flow technology ensures stable water temperature, and the actual volume of hot water can be also increased by 30% or more.

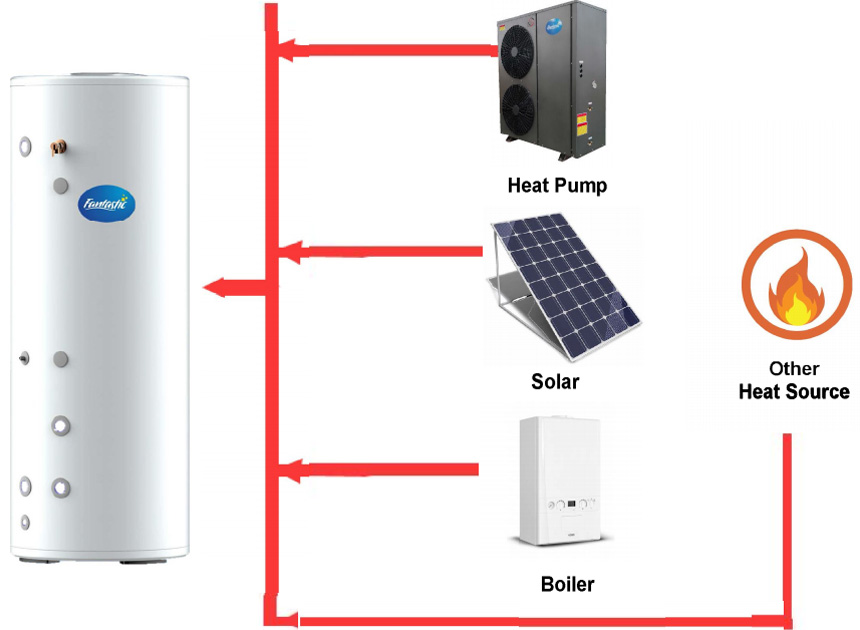

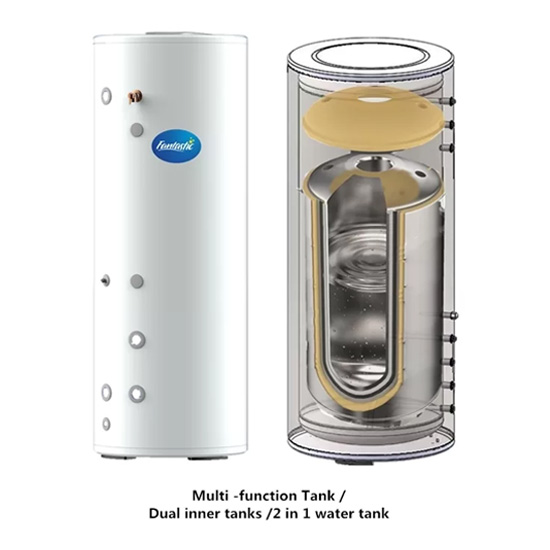

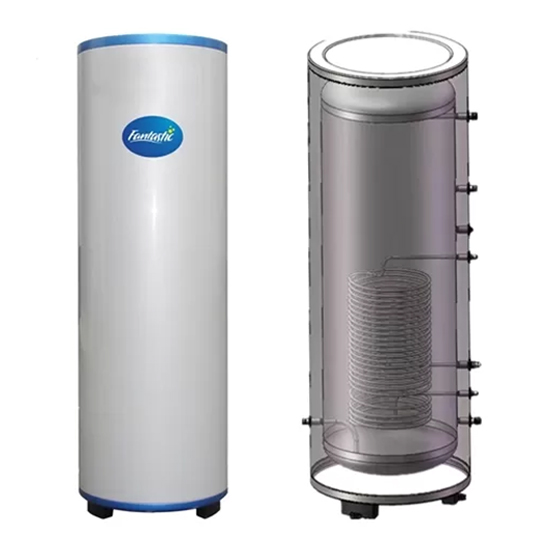

Fantastic water tanks have high performance, which is available with one coil, two coils, or no coil, and also available with one Internal water tank, or two Internal water tanks, widely applied to commercial domestic storage water, heat pump water heaters, solar water heater, electric water heater, boiler etc.
1. 20-Years Experience.

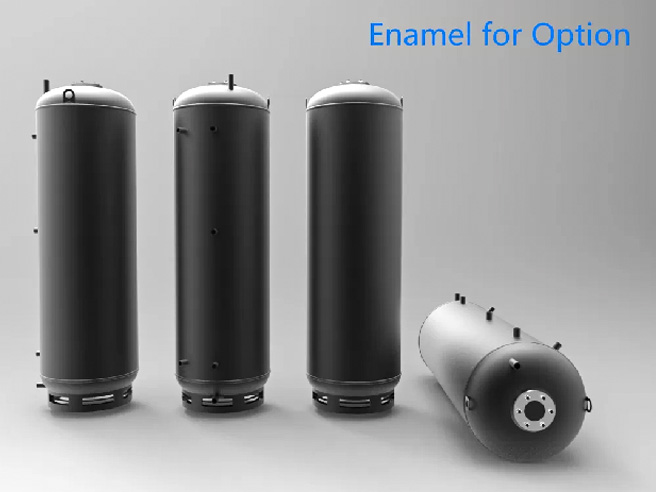

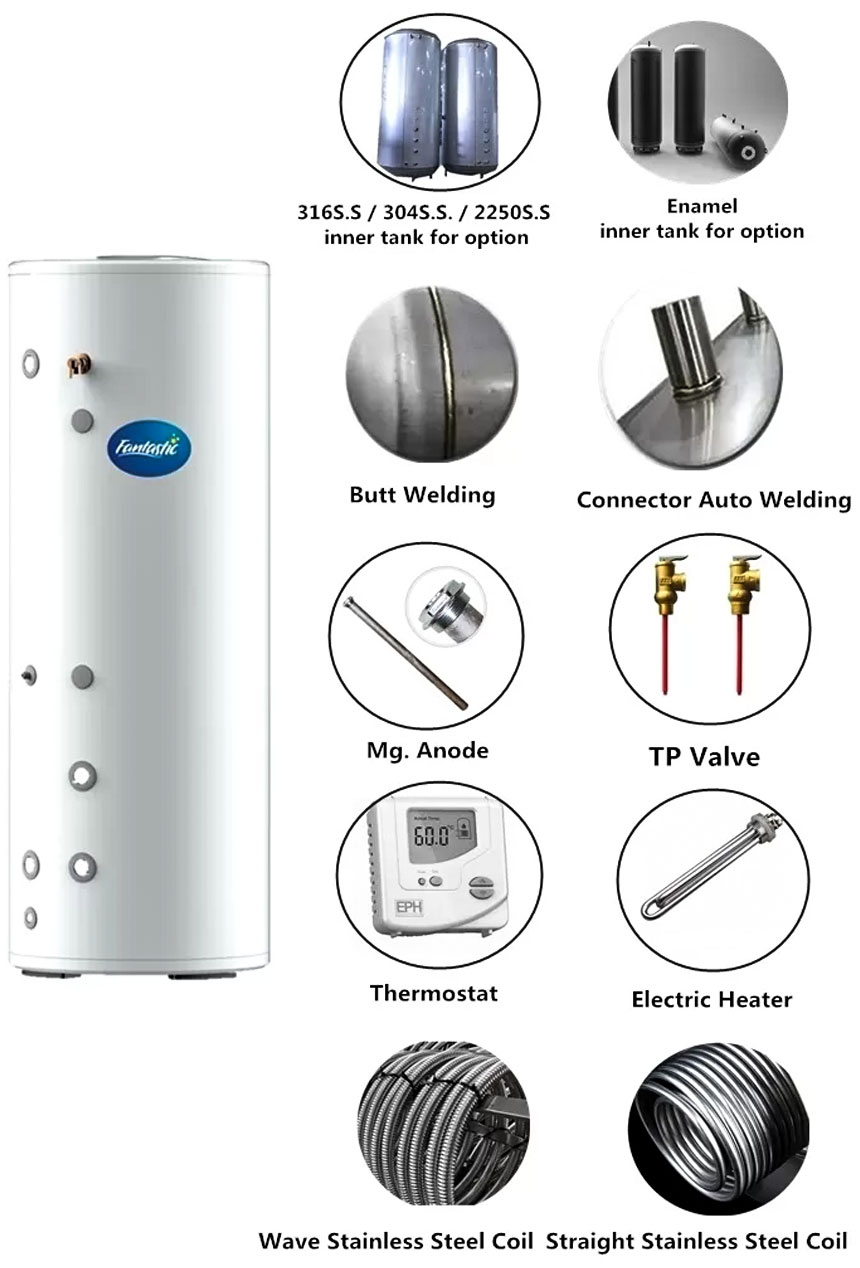

2. Multiple inner liner material options: 316S. S/304S. S 2205S. S – Duplex stainless steel, Enamel.
3. Promotion of various shell materials: stainless steel/spray galvanized/spray sheet metal, etc.
4. Multiple color options: white, black, silver gray, blue, red, stainless steel, etc.
5. Different types and sizes of water tanks from 50 to 2000L can be customized according to customer requirements.
6. One of the largest enamel and stainless steel water tank factories in China.
7. Fully automated production, multiple quality tests, and reliable quality.
8. Withinktransfer flow technology ensures stable water temperature, and the actual volume of hot water can be also increased by 30% or more.
9. Small heat loss and excellent insulation performance.
10. Efficient conversion of energy to heat.
11. The energy source is always available.
| Capacity | L | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 2000 |
| Inner Tank Diameter | mm | Φ370 | Φ420 | Φ470 | Φ600 | Φ600 | Φ600 | Φ700 | Φ800 | Φ1200 |
| Out Shell Diameter | mm | Φ470 | Φ520 | Φ560 | Φ700 | Φ700 | Φ700 | Φ800 | Φ900 | Φ1300 |
| Inner Tank Material | mm | SUS304 / SUS316L / SUS2205 / Enamel | SUS304 / SUS316L / SUS2205 | |||||||
| Out Shell Paterial | mm | galvanized steel with painting / stainless stell / PU / Metal Sheet | ||||||||
| Out shell Color | White / silver-grey / blue / red / golden / stainless stell | |||||||||
| Max. Working Pressure | bar | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Max. Testing Pressure | bar | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Max. Running Temperature | ℃ | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Heating Loss | W/K | 0.65 | 0.72 | 0.89 | 1.02 | 1.15 | 1.26 | —— | —— | —— |
| Standing Loss | W | 30 | 33 | 40 | 46 | 52 | 57 | —— | —— | —— |
| ERP Class ERP | A | A | A | A | A | A | A | A | A | |
| Electrical Heater Option | kw | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 | 3 |
| Mg.Anode | mm | Φ22*300 (option） | ||||||||
| Water Connection | G / BSP / NPT 3/4″(option） | G / BSP / NPT 1″(option） | ||||||||
| Packing si | mm | L:540 | L:600 | L:640 | L:800 | L:800 | L:800 | L:900 | L:1000 | L:1350 |
| W;540 | W:600 | W:640 | W:800 | W:800 | W:800 | W:900 | W:100 | W:1350 | ||
| H:117 | H:1600 | H:1930 | H:1650 | H:1930 | H:2100 | H:2100 | H:2100 | H:2100 | ||
