Applications:
18 years experience – Fantastic company has manufactured over 58,000 air-to-water heat pumps worldwide.
Affordability – Save energy & high performance – As the high COP of Fantastic air source heat pump, it can heat the water for about 30% of the cost of heating with gas and 75% of electric water heater, High COP means more energy saving.
Ex. $ 1 input – $ 4.1 of energy output at COP of 4.1.

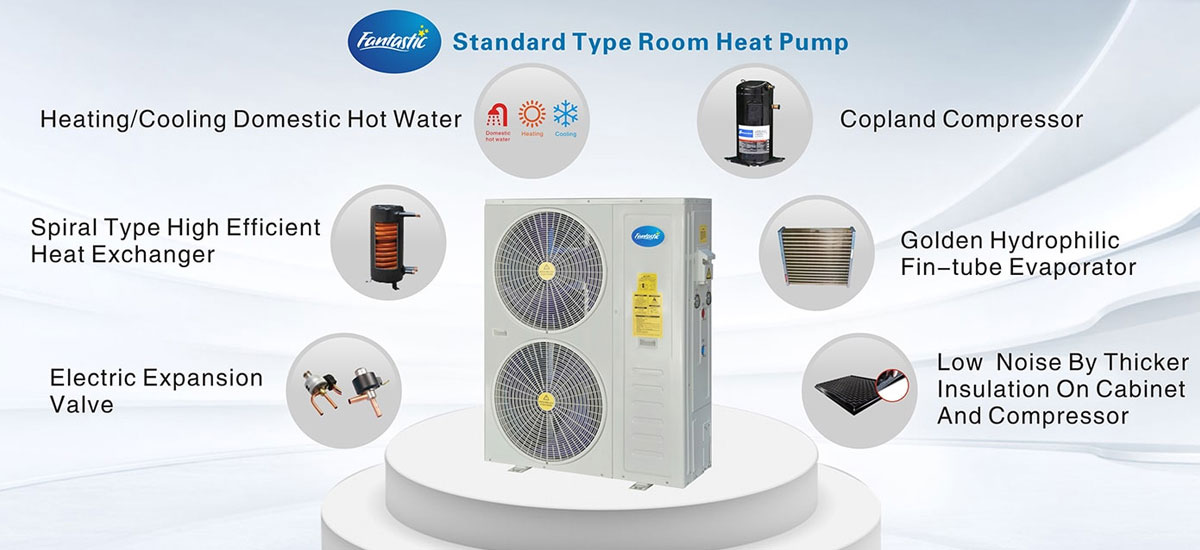

Long life with famous brand high-quality components – CAREL controller and CAREL expansion valve for option, Copland or Panasonic compressor, SWEP plate heat exchanger, WILO water pump, and so on. All the heat pumps are equipped with famous international brand components, and we also can manufacture the casing with stainless steel, and much experience with titanium heat exchanger heat pumps for someplace where water quality is pool or water requirement is special.

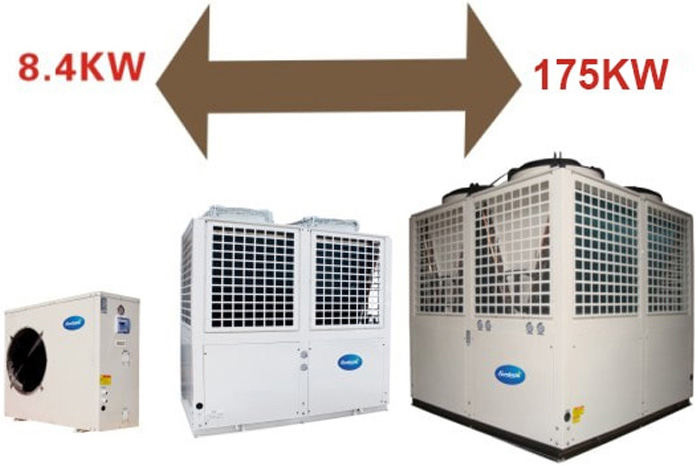

Wide models range – we can design and make from resident to commercial air to water heat pumps up to 210 Kw or bigger as your actual pool situation.
The heating capacity of Fantastic water to water heat pump is up to 175kW and larger. Suitable for different size of project demands, no matter for household or commercial using.
The intelligent CAREL controller with RS485 is adopted to realize the linkage control between the heat pump unit and the terminal application end. With the Cascade function, multiple heat pumps can be controlled at once for greater operating efficiency. The WIFI APP enables users to operate their units through a smartphone wherever and whenever they are.
Fantastic air-to-water heat pump can supply room heating /cooling and domestic hot water.

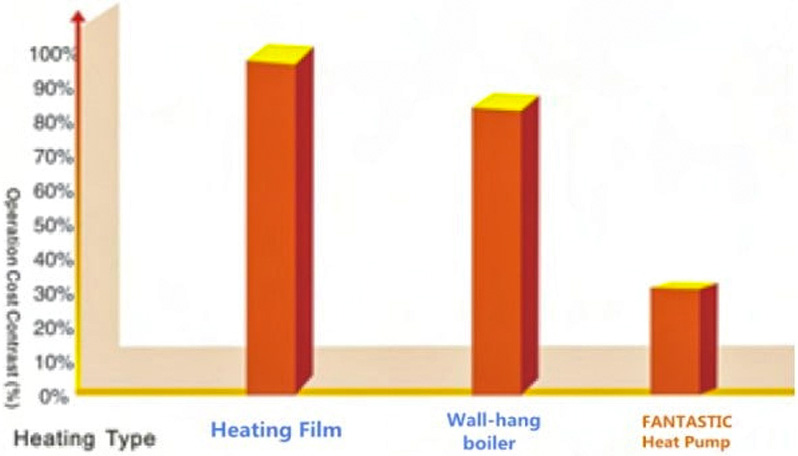

Fantastic advanced heat pump technology can realize low operation costs. Electricity cost is only 75% of the electric water heater.

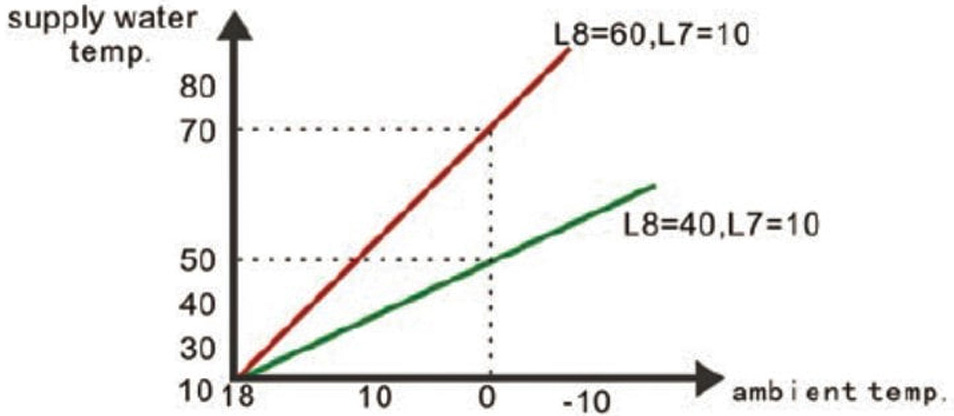

Intelligent working mode with winter heating curve control. According to the changes in outdoor ambient temperature, the heat pump will calculate and supply the most suitable water temperature automatically to save more energy and provide more comfortable and suitable heating/cooling.
Fantastic spiral type high efficient heat exchanger with increased heat exchanger area to improve the heat transfer ability and evenly distribute over the surface of the copper, reducing water film, and improving efficiency.
| Air To Water Heat Pump Water Heater (Residential Models) | |||||||||
| Model 1 | FUHCD010S | FUHCD015S | FUHCD020S | FUHCD030S | FUHCD035S | FUHCD040S | FUHCD050S3 | FUHCD060S3 | |
| Rated Output Water | L/h | 75 | 115 | 150 | 225 | 263 | 300 | 375 | 450 |
| Heating Condition: air DB 20℃/WB 15℃, water from 15℃ to 55℃ | |||||||||
| Heating Capacity① | kW | 3.5 | 5.3 | 7.0 | 10.5 | 12.3 | 14.0 | 17.5 | 21.0 |
| BTU/h | 12000 | 18100 | 23900 | 35900 | 41800 | 47800 | 59800 | 71700 | |
| COP① | W/W | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 |
| Input Power① | kW | 0.76 | 1.16 | 1.53 | 2.29 | 2.67 | 3.06 | 3.82 | 4.59 |
| Input Current① | A | 3.5 | 5.3 | 6.9 | 10.4 | 12.2 | 13.9 | 7.1 | 8.5 |
| Heating condition: air DB 7℃/WB 6℃, water inlet:40℃, water outlet: 45℃ | |||||||||
| Heating Capacity② | kW | 3.0 | 4.5 | 6.0 | 9.0 | 10.5 | 12.0 | 15.0 | 18.0 |
| BTU/h | 10300 | 15400 | 20500 | 30800 | 35826 | 41000 | 51200 | 61500 | |
| COP② | W/W | 3.26 | 3.26 | 3.26 | 3.26 | 3.26 | 3.26 | 3.26 | 3.26 |
| Input Power② | kW | 0.92 | 1.38 | 1.84 | 2.76 | 3.22 | 3.68 | 4.60 | 5.52 |
| Input Current② | A | 4.2 | 6.3 | 8.4 | 12.5 | 14.6 | 16.7 | 8.5 | 10.2 |
| Heating condition: air DB 7℃/WB 6℃, water inlet:30℃, water outlet: 35℃ | |||||||||
| Heating Capacity③ | kW | 3.2 | 4.8 | 6.4 | 9.6 | 11.2 | 12.8 | 16.0 | 19.2 |
| BTU/h | 11000 | 16400 | 21900 | 32800 | 38200 | 43700 | 54600 | 65600 | |
| COP③ | W/W | 4.12 | 4.12 | 4.12 | 4.12 | 4.12 | 4.12 | 4.12 | 4.12 |
| Input Power③ | kW | 0.78 | 1.17 | 1.55 | 2.33 | 2.72 | 3.11 | 3.88 | 4.66 |
| Input Current③ | A | 3.5 | 5.3 | 7.1 | 10.6 | 12.4 | 14.1 | 7.2 | 8.6 |
| Cooling condition: air DB 35℃/–, water inlet: 12℃, water outlet: 7℃ | |||||||||
| Rated Cooling Capacity | KW | 2.5 | 3.5 | 5 | 6.3 | 7.5 | 7.5 | 8.8 | 10.0 |
| BTU/H | 8530 | 11942 | 17060 | 21500 | 25600 | 25600 | 29855 | 34200 | |
| Rated Input Power(Cooling) | KW | 0.88 | 1.23 | 1.75 | 2.21 | 2.63 | 2.63 | 3.07 | 3.51 |
| Rated Input Current(Cooling) | A | 4.0 | 5.6 | 8.0 | 10.0 | 12.0 | 12.0 | 4.7 | 5.3 |
| Rated Temp.Of Water Output | ℃ | 55 | |||||||
| Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 380/3/50 | 380/3/50 |
| Noise | dB(A) | 48 | 48 | 48 | 52 | 54 | 54 | 54 | 55 |
| Compressor | Rotary | Rotary | Rotary | Scroll | Scroll | Scroll | Scroll | Scroll | |
| Fan Direction | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | |
| Refrigerant Type | R32/R410A | ||||||||
| Water Flow Volume | m3/h | 1 | 1.5 | 2 | 2 | 2.5 | 2.5 | 3 | 3.5 |
| Water Out let/Water In let | inch | 3/4″ | 3/4″ | 3/4″ | 1″ | 1″ | 1″ | 1″ | 1″ |
| Air To Water Heat Pump Water Heater (Commercial Models ) | ||||||||||
| Model 1 | FUHCD060T3 | FUHCD080T3 | FUHCD100T3 | FUHCD120T3 | FUHCD150T3 | FUHCD200T3 | FUHCD250T3 | FUHCD300T3 | FUHCD500T3 | |
| Rated Output Water | L/h | 450 | 600 | 750 | 900 | 1128 | 1500 | 1875 | 2250 | 3750 |
| Heating Condition: air DB 20℃/WB 15℃, water from 15℃ to 55℃ | ||||||||||
| Heating Capacity① | kW | 21.0 | 28.0 | 35.0 | 42.0 | 52.5 | 70.0 | 87.5 | 105.0 | 175 |
| BTU/h | 71700 | 95600 | 119500 | 143400 | 179130 | 238900 | 298600 | 358300 | 597200 | |
| COP① | W/W | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 |
| Input Power① | kW | 4.59 | 6.11 | 7.64 | 9.17 | 11.46 | 15.28 | 19.10 | 22.93 | 38 |
| Input Current① | A | 7.0 | 9.3 | 11.6 | 13.9 | 17.4 | 23.2 | 29.0 | 34.8 | 58 |
| Heating condition: air DB 7℃/WB 6℃, water inlet: 40℃, water outlet: 45℃ | ||||||||||
| Heating Capacity② | kW | 18.0 | 24.0 | 30.0 | 36.0 | 45.0 | 60.0 | 75.0 | 90.0 | 150 |
| BTU/h | 61500 | 81900 | 102400 | 122900 | 153540 | 204800 | 256000 | 307100 | 512000 | |
| COP② | W/W | 3.26 | 3.26 | 3.26 | 3.26 | 3.26 | 3.26 | 3.26 | 3.26 | 3.26 |
| Input Power② | kW | 5.52 | 7.36 | 9.20 | 11.04 | 13.80 | 18.40 | 23.01 | 27.61 | 46 |
| Input Current② | A | 8.4 | 11.2 | 14.0 | 16.8 | 21.0 | 28.0 | 35.0 | 41.9 | 70 |
| Heating condition: air DB 7℃/WB 6℃, water inlet: 30℃, water outlet: 35℃ | ||||||||||
| Heating Capacity③ | kW | 19.2 | 25.6 | 32.0 | 38.4 | 48.0 | 64.0 | 80.0 | 96.0 | 160 |
| BTU/h | 65600 | 87400 | 109200 | 131100 | 163776 | 218400 | 273000 | 327600 | 546000 | |
| COP③ | W/W | 4.12 | 4.12 | 4.12 | 4.12 | 4.12 | 4.12 | 4.12 | 4.12 | 4.12 |
| Input Power③ | kW | 4.66 | 6.21 | 7.77 | 9.32 | 11.65 | 15.53 | 19.42 | 23.30 | 39 |
| Input Current③ | A | 7.1 | 9.4 | 11.8 | 14.2 | 17.7 | 23.6 | 29.5 | 35.4 | 59.0 |
| Cooling condition: air DB 35℃/–, water inlet: 12℃, water outlet: 7℃ | ||||||||||
| Rated Cooling Capacity | KW | 15.0 | 20.0 | 25.0 | 30.0 | 37.5 | 50.0 | 62.5 | 75.0 | 125.0 |
| BTU/H | 51200 | 68300 | 85400 | 102400 | 127950 | 170600 | 213300 | 256000 | 426500 | |
| Rated Input Power(Cooling) | KW | 5.26 | 7.02 | 8.77 | 10.53 | 13.16 | 17.54 | 21.93 | 26.32 | 43.86 |
| Rated Input Current(Cooling) | A | 9.8 | 13.0 | 16.3 | 19.5 | 24.4 | 32.5 | 40.6 | 48.8 | 81.3 |
| Rated Temp.Of Water Output | ℃ | 55 | ||||||||
| Power Supply | V/PH/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Noise | dB(A) | 55 | 58 | 59 | 62 | 65 | 65 | 66 | 68 | 70 |
| Compressor | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | |
| Fan Direction | vertical | vertical | vertical | vertical | vertical | vertical | vertical | vertical | vertical | |
| Water Flow Volume | m3/h | 3.5 | 5 | 6 | 7 | 9 | 12 | 15 | 18 | 30.1 |
| Water Out let/Water In let | inch | 1″ | 1–1/4″ | 1–1/4″ | 1–1/4″ | 2″ | 2″ | 3″ | 3″ | 4″ |
| Refrigerant Type | R32/R410A | |||||||||
