Applications:

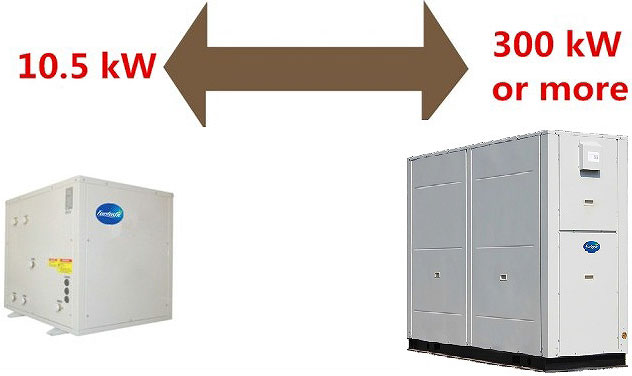

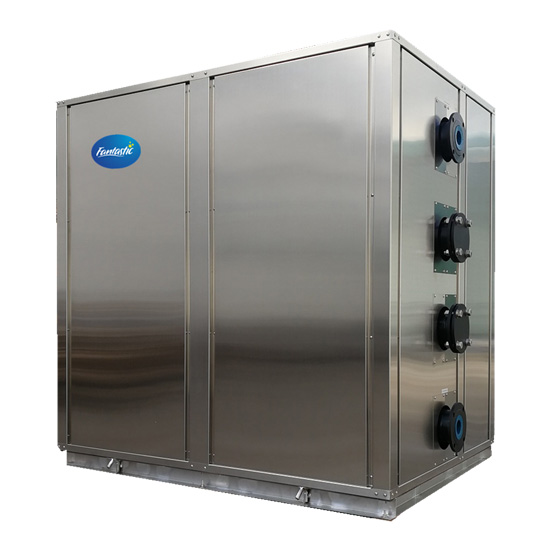

The heating capacity of Fantastic Air to heat pump is up to 300 Kw or bigger. Suitable for different sizes of project demand, no matter for household or commercial use. Customized Design for different customers’ projects.
Fantastic heat pump has precise energy stage settings to ensure the working unit achieves the desired energy-saving efficiency. The heat pump will change the compressor using quantity as the real heat required by the water inlet temperature. When it needs a higher heating load, it will use the full compressor quantity, when the water temperature is close to the target set temperature, it needs a lower heating load, then will off some compressor and just use the compressor quantity as the real heat load.
Intelligent working mode with a winter Heating Curve, according to the change in water temperature, the heat pump will calculate and supply the most suitable water temperature automatically to save much energy and provide more comfort and enough heating/cooling.

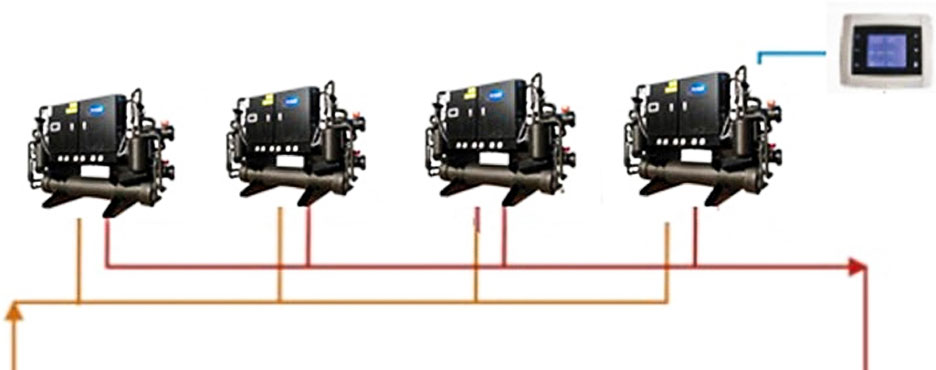

Fantastic controller can control up to 16 units of heat pump at the same time by one controller equipped with centralized control that makes temperature adjustment and failure review much easier and more practical. By incorporating the master-slave control into the design, the whole unit can work together with higher efficiency without being interfered with by any failure of the slave unit during operation and can choose all heat pumps to work at the same time or only some of the heat pumps work according to the actual demand automatically, more energy-saving.

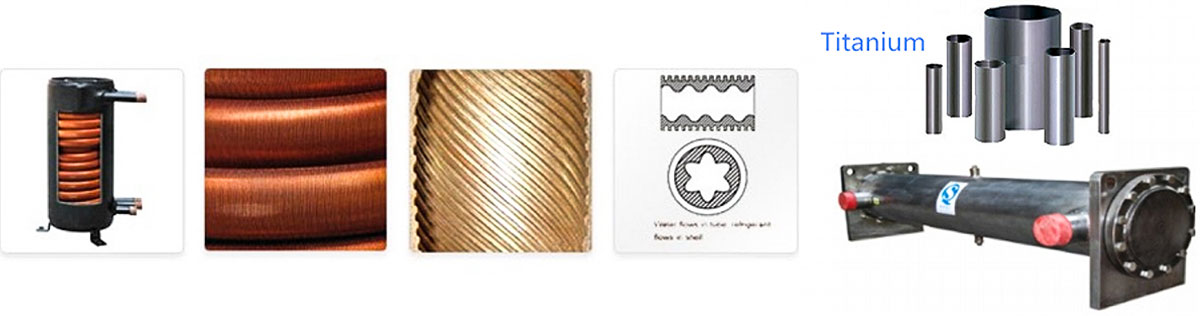

Fantastic heat pump increases Heating capacity and extends the Operation life by TEV, increases COP and limits the discharge temperature under a safe level by EEV, and less the defrosting time to make heat pump put more time on heating and more energy-saving.

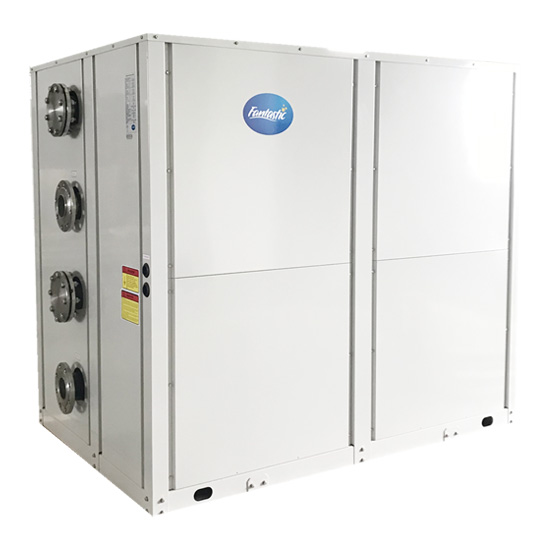

| Water source heat pump (Heating, cooling, hot water) | |||||||||||||||
| Model | FWWHCD030 | FWWHCD0503 | FWWHCD0603 | FWWHC10603 | FWWHCD1203 | FWWHCD1403 | FWWHCD2003 | FWWHCD2503 | FWWHCD3003 | FWWHCD3603 | FWWHCD4003 | FWWHCD5003 | FWWHCD0603 | FWWHCD10003 | |
| Heating capactiy① | KW | 9.6 | 16.0 | 19.2 | 32.0 | 38.4 | 44.8 | 64.0 | 80.0 | 96.0 | 115.2 | 128.0 | 168.0 | 192.0 | 320.0 |
| BTU/h | 32800 | 54600 | 65500 | 109200 | 131000 | 152900 | 218400 | 273000 | 327600 | 393100 | 436700 | 573200 | 655100 | 1091800 | |
| COP① | W/W | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 |
| Input power (Heating)① | KW | 1.78 | 2.96 | 3.56 | 5.93 | 7.11 | 8.30 | 11.85 | 14.81 | 17.78 | 21.33 | 23.70 | 31.11 | 35.56 | 59.26 |
| Input current (Heating)① | A | 8.1 | 5.6 | 6.8 | 11.3 | 13.5 | 15.8 | 22.5 | 28.1 | 33.8 | 40.5 | 45.0 | 59.1 | 67.5 | 112.5 |
| Heating capactiy② | KW | 9.0 | 15.0 | 18.0 | 30.0 | 36.0 | 42.0 | 60.0 | 75.0 | 90.0 | 108.0 | 120.0 | 150.0 | 180.0 | 300.0 |
| BTU/h | 30700 | 51200 | 61400 | 102400 | 122800 | 143300 | 204700 | 255900 | 307100 | 368500 | 409400 | 511800 | 614200 | 1023600 | |
| COP② | W/W | 4.05 | 4.05 | 4.05 | 4.05 | 4.05 | 4.05 | 4.05 | 4.05 | 4.05 | 4.05 | 4.05 | 4.05 | 4.05 | 4.05 |
| Input power (Heating)② | KW | 2.22 | 3.70 | 4.44 | 7.41 | 8.89 | 10.37 | 14.81 | 18.52 | 22.22 | 26.67 | 29.63 | 37.04 | 44.44 | 74.07 |
| Input current (Heating)② | A | 10.1 | 7.0 | 8.4 | 14.1 | 16.9 | 19.7 | 28.1 | 35.2 | 42.2 | 50.6 | 56.3 | 70.3 | 84.4 | 140.7 |
| Cooling capacity | KW | 7.8 | 13.0 | 15.6 | 26.0 | 31.2 | 36.4 | 50.0 | 65.0 | 75.0 | 90.0 | 100.0 | 120.0 | 150.0 | 250.0 |
| BUT/h | 26600 | 44400 | 53200 | 88700 | 106500 | 124200 | 170600 | 221800 | 255900 | 307100 | 341200 | 409400 | 511800 | 853000 | |
| Input power (Cooling) | KW | 1.86 | 3.08 | 3.70 | 6.17 | 7.32 | 8.60 | 11.90 | 15.29 | 17.80 | 21.40 | 23.80 | 28.24 | 35.70 | 59.50 |
| Input current (Cooling) | A | 8.5 | 5.8 | 7.0 | 11.7 | 13.9 | 16.3 | 22.6 | 29.0 | 33.8 | 40.6 | 45.2 | 53.6 | 67.8 | 113.0 |
| Power supply | V/PH/Hz | 220/1/50 | 380/3/50 | ||||||||||||
| Compressor | Rotary | Scroll | |||||||||||||
| Max running current | A | 14.5 | 10.1 | 12.2 | 20.3 | 24.3 | 28.4 | 40.5 | 50.7 | 60.8 | 72.9 | 81.0 | 101.3 | 121.6 | 202.6 |
| Noise | dB(A） | 50 | 50 | 51 | 53 | 55 | 55 | 56 | 56 | 57 | 59 | 62 | 62 | 65 | 67 |
| Water inlet/outlet | inch | 1″ | 1″ | 1″ | 1-1/4″ | 1-1/4″ | 1-1/2″ | 2″ | 3″ | 3″ | 3″ | 4″ | 4″ | 4″ | 5″ |
| Water flow volume (5~3℃difference) | m³/h | 1.7~2.6 | 2.8~4.3 | 3.3~5.2 | 5.5~8.6 | 6.6~10.3 | 7.7~12.0 | 11.0~17.2 | 13.8~21.5 | 16.5~25.7 | 19.8~30.9 | 22.0~34.4 | 28.9~43.0 | 33.0~51.6 | 55.0~86.0 |
| Refrigerant | R22/R410A/R407C | ||||||||||||||
| Unit dimension (L/M/H) | mm | 670/600/760 | 755/665/725 | 755/665/725 | 840/720/1160 | 840/720/1160 | 840/720/1160 | 1220/1100/1515 | 1220/1100/1515 | 1630/1100/1515 | 1630/1100/1515 | 2010/1100/1515 | 2010/1100/1515 | ||
| Shipping dimension (L/M/H) | mm | 720/650/860 | 805/715/825 | 805/715/825 | 890/770/1260 | 890/770/1260 | 890/770/1260 | 1290/1170/1715 | 1290/1170/1715 | 1750/1170/1715 | 1750/1170/1715 | 2130/1170/1715 | 2130/1170/1715 | ||
| Remark: (1) Cooling: Air condition side inlet/outlet: 12℃/7℃, Hot source side inlet/outlet:30℃/35℃ (2) ①Heating: Air condition side inlet/outlet: 30℃/35℃, Hot source side inlet/outlet:10℃/- (3) ②Heating: Air condition side inlet/outlet: 40℃/45℃, Hot source side inlet/outlet:10℃/- (4) Running temperature: Ambient temperature-30℃~50℃, Hot source water temperature 8℃~38℃ |
|||||||||||||||
